TR250R
lmages are for reference only.TR250R
250V 250A 8 5/8X2 1/10 TD
DatasheetCylindrical, Blade Terminals
82,965 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
250A 250 VAC 250 VDC Fuse Cartridge Requires Holder
TR250R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | TR-R |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 250A |
| Voltage Rating - AC | 250 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | RK5 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Cylindrical, Blade Terminals |
| Size / Dimension | 2.087" Dia x 8.622" L (53.00mm x 219.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 250 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

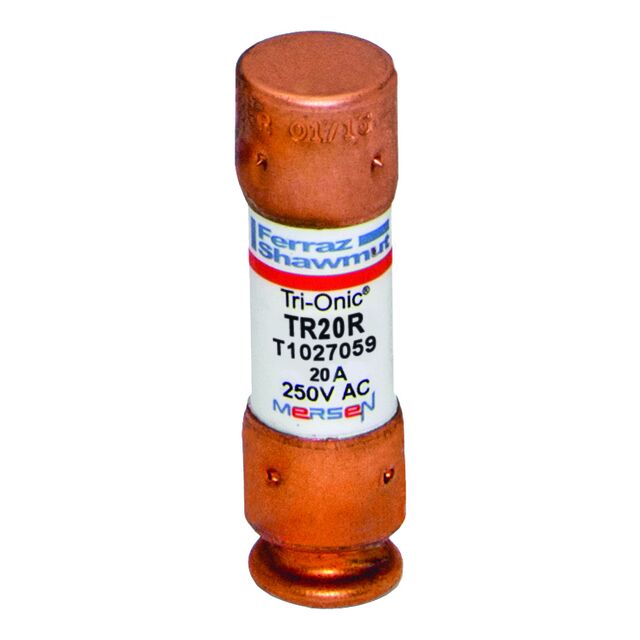

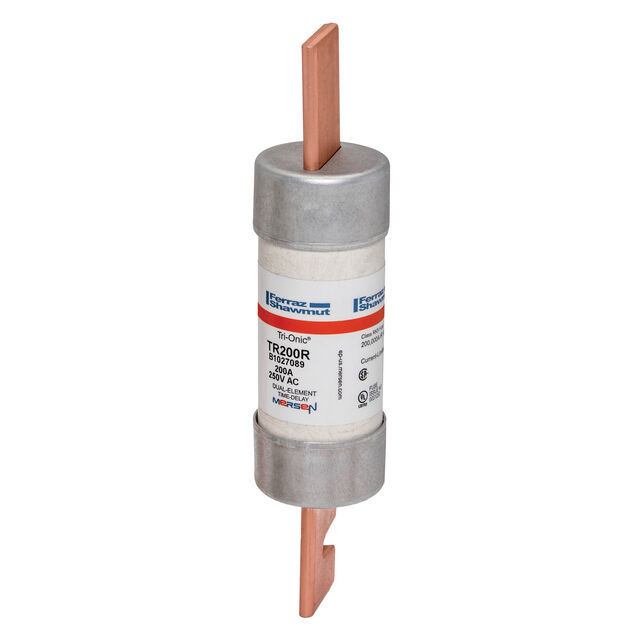

| Part Number | TR2-1/2R | TR200R | TR200RID | TR20R |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE,TIME DELAY,CLASS RK5,REJECT | 250V 200A 7 1/8X1 9/10 TD | 250V 200A TD RK5 FUSE SMARTSPO | 250V 20A 2X9/16 RK5 TD FU |
| Series | TR-R | TR-R | TR-R | TR-R |
| Packaging | Box | Box | Box | Box |
