TR40R
lmages are for reference only.TR40R
250V 40A 3X13/16 RK5 TD F
DatasheetCartridge, Non-Standard
87,700 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
40A 250 VAC 250 VDC Fuse Cartridge Requires Holder
TR40R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | TR-R |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 40A |
| Voltage Rating - AC | 250 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | RK5 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 0.827" Dia x 2.992" L (21.00mm x 76.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 250 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

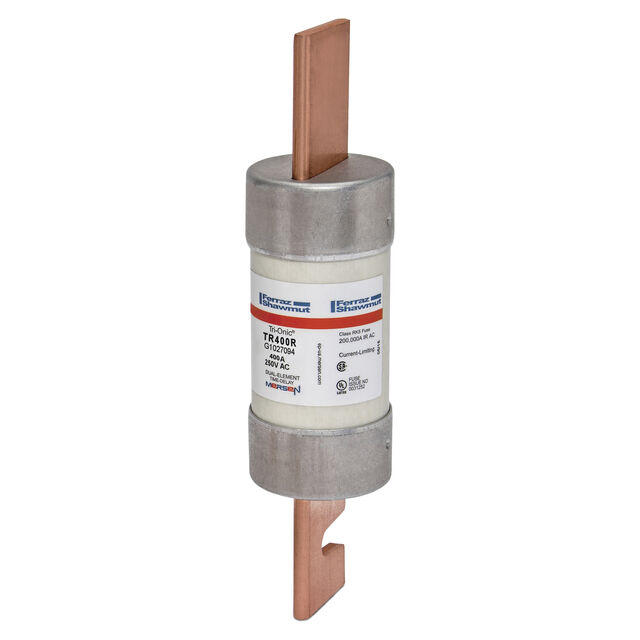

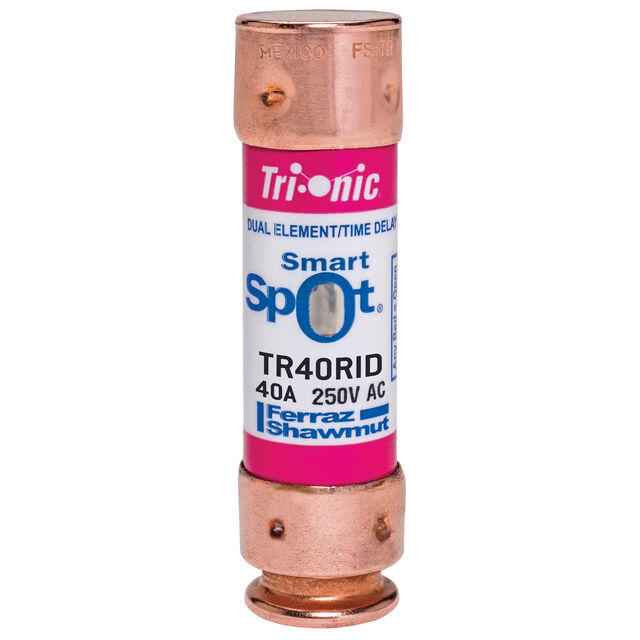

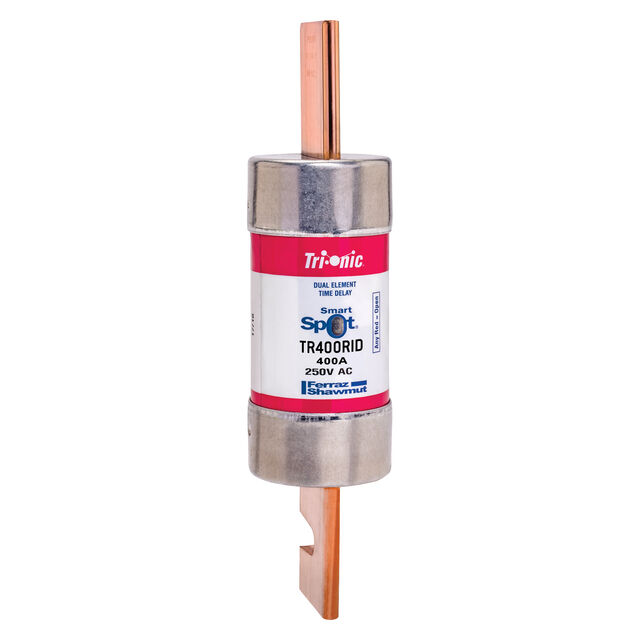

| Part Number | TR400R | TR400RID | TR40RID | TR-1245UMFT1-25-R |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 250V 400A 8 5/8X2 1/10 TD | 250V 400A TD RK5 FUSE SMARTSPO | 250V 40A TD RK5 FUSE SMARTSPOT | FUSE T-DELAY 250V 1245 1.25A |
| Series | TR-R | TR-R | TR-R | 1245UMFT |
| Packaging | Box | Box | Box | Tape & Reel (TR)-->Cut Tape (CT) |
