TRS200R
lmages are for reference only.TRS200R
600V 200A 9 5/8X1 13/16 T
DatasheetCylindrical, Blade Terminal (Bolt)
47,225 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
200A 600 VAC 600 VDC Fuse Cartridge Bolt Mount
TRS200R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | TRS-R |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 200A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | RK5 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.811" Dia x 9.606" L (46.00mm x 244.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 600 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

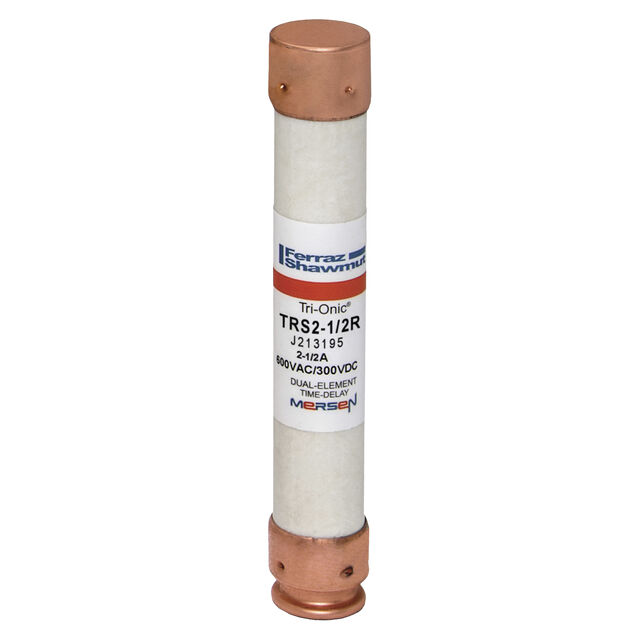

| Part Number | TRS200RID | TRS2-1/2R | TRS2-8/10R | TRS20R |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | 600V 200A TD RK5 FUSE SMARTSPO | 600V 2 1/2A 5X13/16 TD FUSE | FUSE,TIME DELAY,CLASS RK5,REJECT | 600V 20A 5X13/16 TD FUSE |
| Series | TRS-R | TRS-R | TRS-R | TRS-R |
| Packaging | Box | Box | Box | Box |
