TRS30R
lmages are for reference only.TRS30R
600V 30A 5X13/16 TD FUSE
DatasheetCartridge, Non-Standard
59,102 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30A 600 VAC 300 VDC Fuse Cartridge Requires Holder
TRS30R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | TRS-R |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 30A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | RK5 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 0.827" Dia x 5.000" L (21.00mm x 127.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 300 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

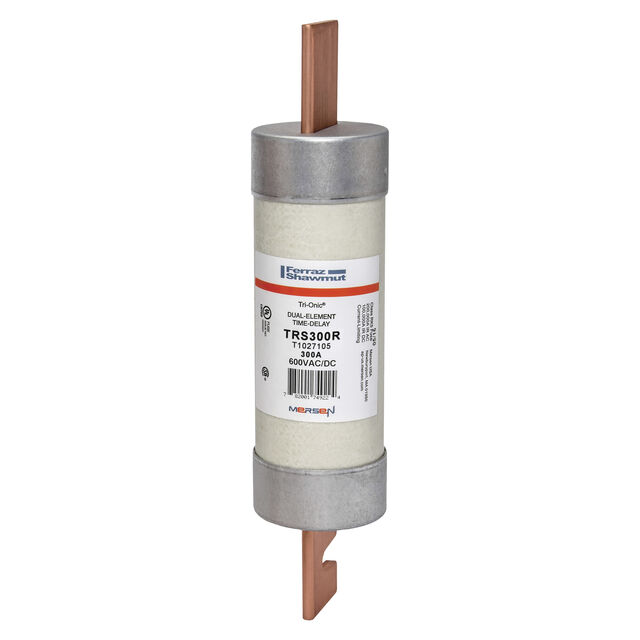

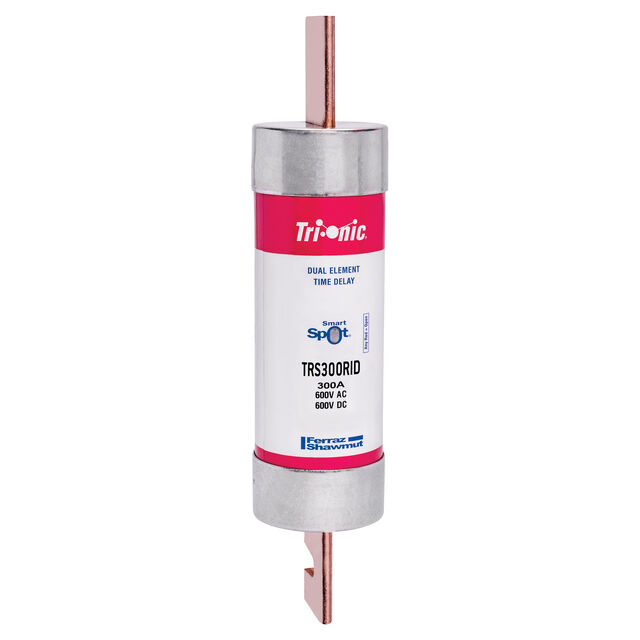

| Part Number | TRS300R | TRS300RID | TRS30RID | TRS1-1/4R |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |

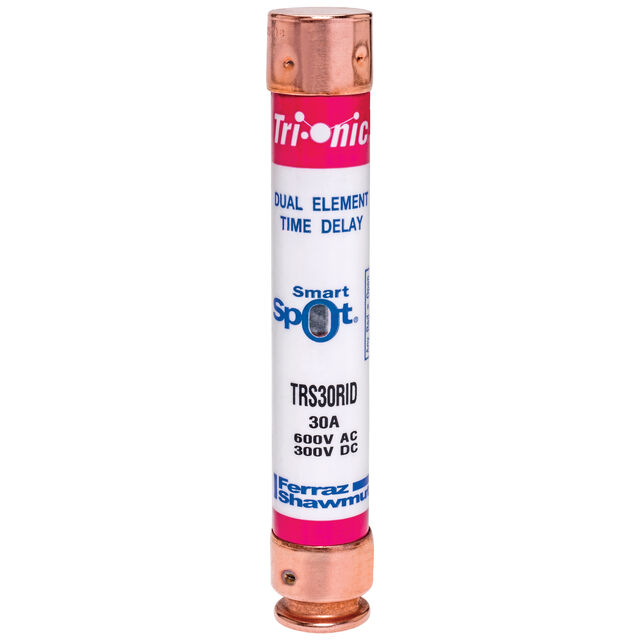

| Description | 600V 300A 11 5/8X2 9/16 T | 600V 300A TD RK5 FUSE SMARTSPO | 600V 30A TD RK5 FUSE SMARTSPOT | 600V 1 1/4A 5X13/16 TD FUSE |
| Series | TRS-R | TRS-R | TRS-R | TRS-R |
| Packaging | Box | Box | Box | Box |
