TRS500R
lmages are for reference only.TRS500R
600V 500A 13 3/8X3 1/8 TD
DatasheetCylindrical, Blade Terminals
86,085 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
500A 600 VAC 600 VDC Fuse Cartridge Requires Holder
TRS500R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | TRS-R |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 500A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | RK5 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Package / Case | Cylindrical, Blade Terminals |
| Size / Dimension | 3.150" Dia x 13.386" L (80.00mm x 340.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 600 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

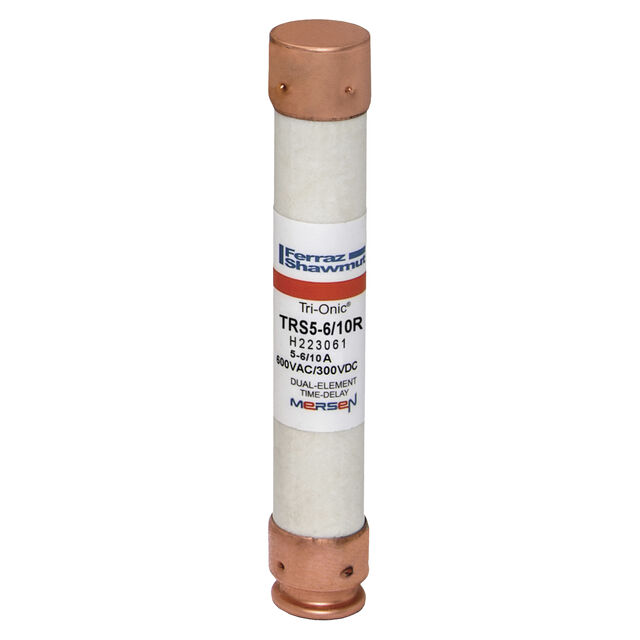

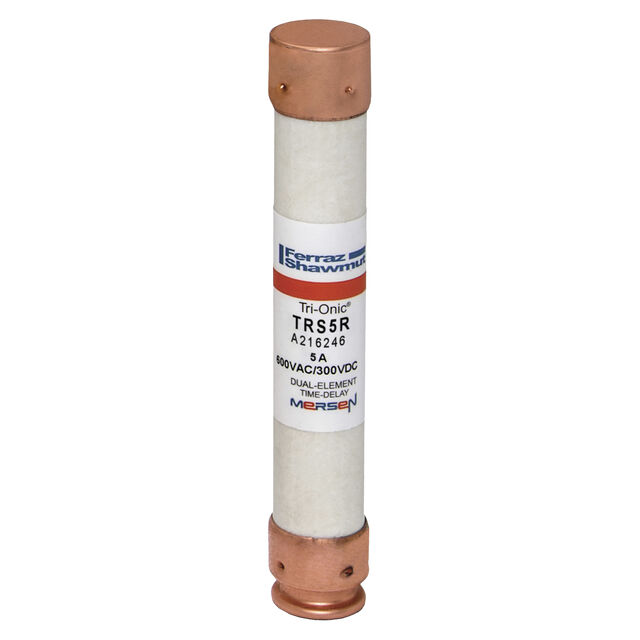

| Part Number | TRS5-6/10R | TRS50R | TRS50RID | TRS5R |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | FUSE,TIME DELAY,CLASS RK5,REJECT | 600V 50A 5 1/2X1 1/16 TD | 600V 50A TD RK5 FUSE SMARTSPOT | 600V 5A 5X13/16 TD FUSE |
| Series | TRS-R | TRS-R | TRS-R | TRS-R |
| Packaging | Box | Box | Box | Box |
