TS7805CZ C0G
lmages are for reference only.TS7805CZ C0G
IC REG LINEAR 5V 1A TO220
DatasheetTO-220-3
62,967 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220
TS7805CZ C0G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 1A (Typ) |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 8 mA |
| PSRR | 78dB (120Hz) |
| Control Features | Current Limit |
| Protection Features | Over Temperature |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Base Product Number | TS7805 |
| Current - Supply (Max) | 500 µA |
| Product Attribute |  |
|
 |
|

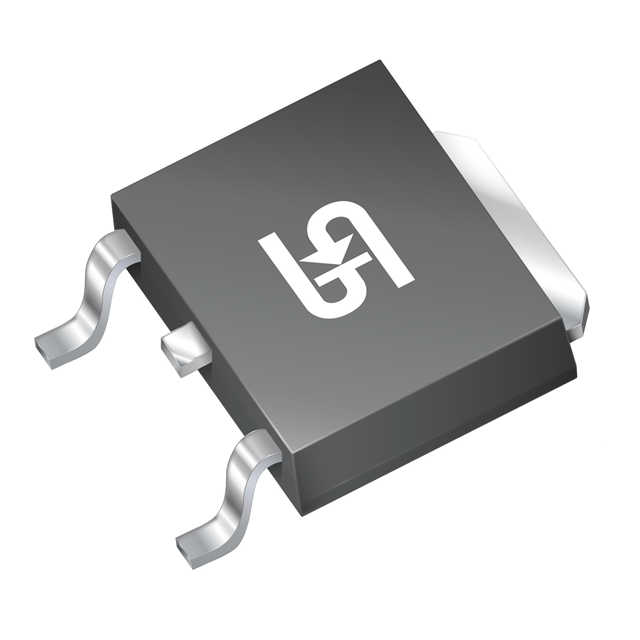

| Part Number | TS7805CZ C0 | TS1117BCP | TS1117BCP ROG | TS1117BCP33 |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 5V 1A TO-220 | 1A ADJUSTABLE LOW DROPOUT VOLTAG | IC REG LINEAR POS ADJ 1A TO252 | 1A 3.3V LOW DROPOUT VOLTAGE REGU |
| Series | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
