TSC-112D3H,000

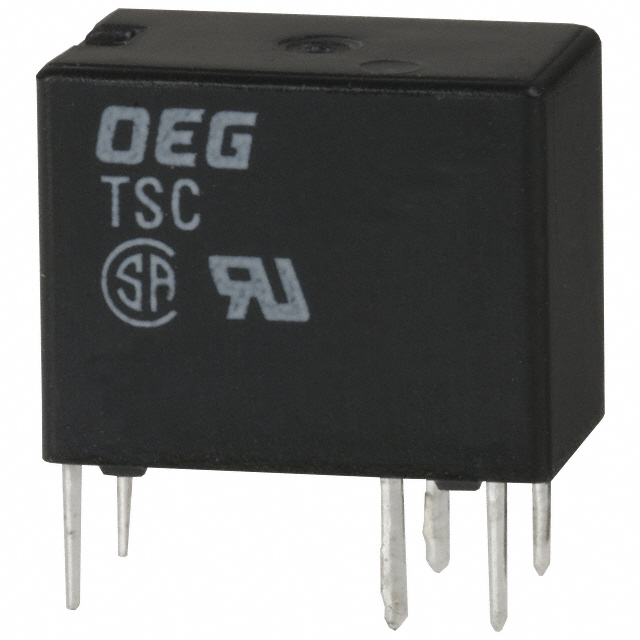

lmages are for reference only.TSC-112D3H,000
RELAY TELECOM SPDT 1A 12V
Datasheet-
64,889 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Telecom Relay SPDT (1 Form C) Through Hole
TSC-112D3H,000
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | TSC, OEG |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 120VAC, 30VDC - Max |
| Load - Max Switching | 120VA, 30W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Operating Temperature | -30°C ~ 80°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CSA, UR |
| Relay Type | Telecom |
| Grade | - |
| Qualification | - |
| Base Product Number | TSC-112 |
| Coil Current | 25 mA |
| Coil Resistance | 480 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | TSC-103L3H,000 | TSC-105D3H,000 | TSC-105D3H000 | TSC-105L3H,000 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | RELAY TELECOM SPDT 1A 3V | RELAY TELECOM SPDT 1A 5V | RELAY TELECOM SPDT 1A 5V | RELAY TELECOM SPDT 1A 5V |
| Series | TSC, OEG | TSC, OEG | TSC, OEG | TSC, OEG |
| Packaging | Bulk | Tube | Bulk | Box |
