TSC200IDT

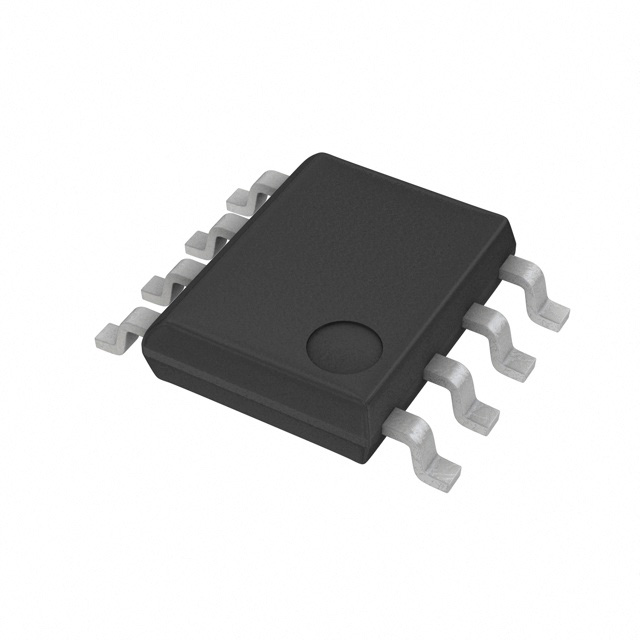

lmages are for reference only.TSC200IDT
HIGH VOLTAGE, CURRENT SENSE AMPL
Datasheet8-SOIC (0.154", 3.90mm Width)
89,448 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sense Amplifier 1 Circuit Open Drain 8-SO
TSC200IDT
| Category | Integrated Circuits (ICs) - Linear - Amplifiers |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Amplifier Type | Current Sense |
| Number of Circuits | 1 |
| Output Type | Open Drain |
| Slew Rate | 7V/µs |
| Gain Bandwidth Product | - |
| Current - Input Bias | 500 nA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 840µA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 18 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | - |
| Current - Output / Channel | - |
| -3db Bandwidth | 1 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TSC200IST | TSC200IYDT | TSC200IYST | TSC101AILT |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LOW / HIGH SIDE BIDIRECTIONAL, Z | SO 08 .15 JEDEC | MSOP/TSSOP 8 BODY3.00 PITCH0.65 | IC CURR SENSE 1 CIRCUIT SOT23-5 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
