TSCDLNN015PGUCV

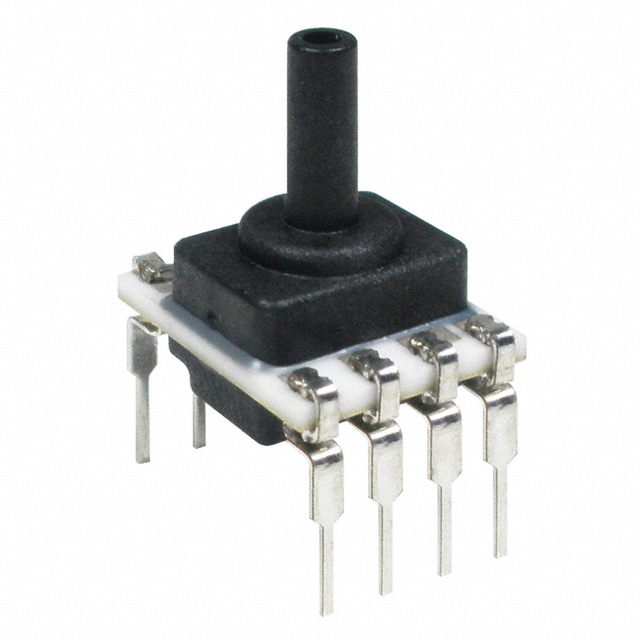

lmages are for reference only.TSCDLNN015PGUCV
SENSOR 15PSIG 0.1" .02625V 8DIP
Datasheet8-DIP (0.524", 13.30mm), Top Port
69,141 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.1" (2.47mm) Tube 0 mV ~ 26.25 mV (5V) 8-DIP (0.524", 13.30mm), Top Port
TSCDLNN015PGUCV
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® TSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | TSCDLNN |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 26.25 mV (5V) |
| Accuracy | ±0.15% |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.1" (2.47mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 60PSI (413.69kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.524", 13.30mm), Top Port |
| Supplier Device Package | 8-DIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TSCDLNN001PGUCV | TSCDLNN005PGUCV | TSCDLNN060PGUCV | TSCDLNN100MDUCV |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 1PSIG 0.1" .0075V 8DIP | SENSOR 5PSIG 0.1" .025V 8DIP | SENSOR 60PSIG 0.1" .03V 8DIP | SENSOR 1.45PSID 0.1" .022V 8DIP |
| Series | TruStability® TSC | TruStability® TSC | TruStability® TSC | TruStability® TSC |
| Packaging | Tray | Bulk | Bulk | Bulk |
