TSCSNNN100PGUCV

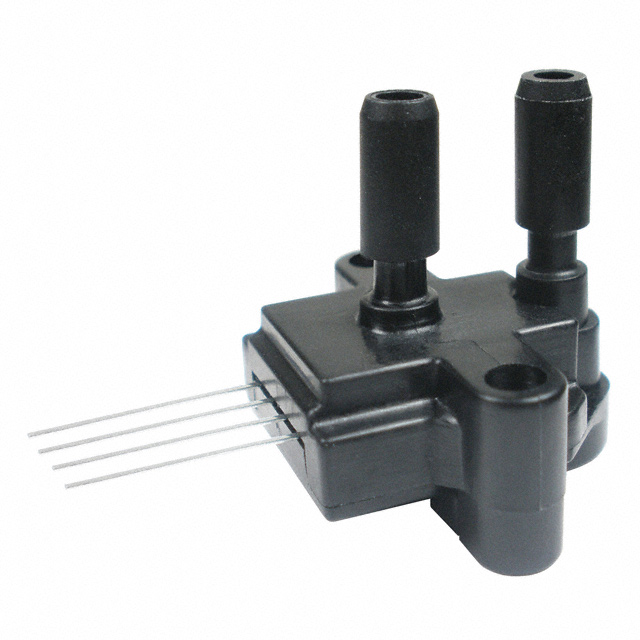

lmages are for reference only.TSCSNNN100PGUCV
SENSOR 100PSIG .0305V 4SIP
Datasheet4-SIP Module
87,886 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 100PSI (689.48kPa) Vented Gauge 0 mV ~ 30.5 mV (5V) 4-SIP Module
TSCSNNN100PGUCV
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® TSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | TSCSNNN |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 100PSI (689.48kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 30.5 mV (5V) |
| Accuracy | ±0.15% |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | - |
| Port Style | No Port |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 245PSI (1689.22kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|
| Part Number | TSCSNNN100PGUCV | TSCSNBN001PDUCV | TSCSNBN005PDUCV | TSCSNBN005PDUCV |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 100PSIG .0305V 4SIP | SENSOR 1PSID 0.19" .015V 4SIP | SENSOR 5PSID 0.19" .05V 4SIP | SENSOR 5PSID 0.19" .05V 4SIP |
| Series | TruStability® TSC | TruStability® TSC | TruStability® TSC | TruStability® TSC |
| Packaging | Bulk | Bulk | Tray | Tray |
