TSDA-O-IR025-HM-C

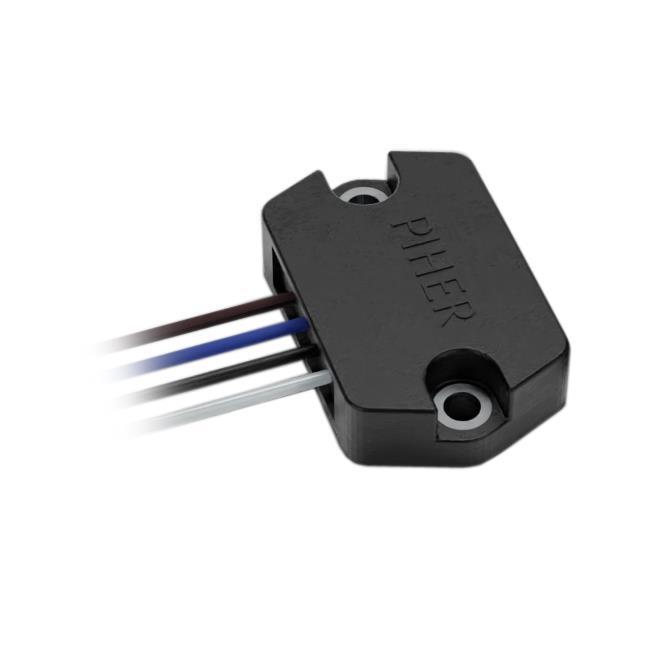

lmages are for reference only.TSDA-O-IR025-HM-C
TILT SENSOR MEMS INCLINOMETER 25
DatasheetModule
98,982 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Sensor Inclinometer ±25° X, Y Axis 100Hz Bandwidth Module
TSDA-O-IR025-HM-C
| Category | Sensors, Transducers - Motion Sensors - Inclinometers |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | TSDA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Axis | X, Y |
| Measuring Range | ±25° |
| Sensitivity | - |
| Bandwidth | 100Hz |
| Voltage Rating | 8 V ~ 36 V |
| Output Type | Digital |
| Interface | CAN |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | TSDA-O-IR025-HM-C | TSDA-O-IR025-HM-W | TSDA-O-IR025-HM-W | TSDA-O-IR045-HM-C |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TILT SENSOR MEMS INCLINOMETER 25 | TILT SENSOR MEMS INCLINOMETER 25 | TILT SENSOR MEMS INCLINOMETER 25 | TILT SENSOR MEMS INCLINOMETER 45 |
| Series | TSDA | TSDA | TSDA | TSDA |
| Packaging | Bulk | Bulk | Bulk | Bulk |
