Product CatalogPart Number
TSM 2415D
Manufacturer
Traco PowerDescription
DC DC CONVERTER +/-15V 900MW
Datasheet
DatasheetPackage
18-SMD Module, 10 Leads
In Stock
26,036 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TSM 2415D
TSM 2415D
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -15V 30mA, 30mA 21.6V - 26.4V Input
Quick Inquiry
TSM 2415D
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Traco Power |
| Series | TSM (1W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 30mA, 30mA |
| Power (Watts) | 900 mW |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 80% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 18-SMD Module, 10 Leads |
| Size / Dimension | 0.60" L x 0.31" W x 0.32" H (15.2mm x 8.0mm x 8.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | TSM 2415 |
| Voltage - Isolation | 1 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

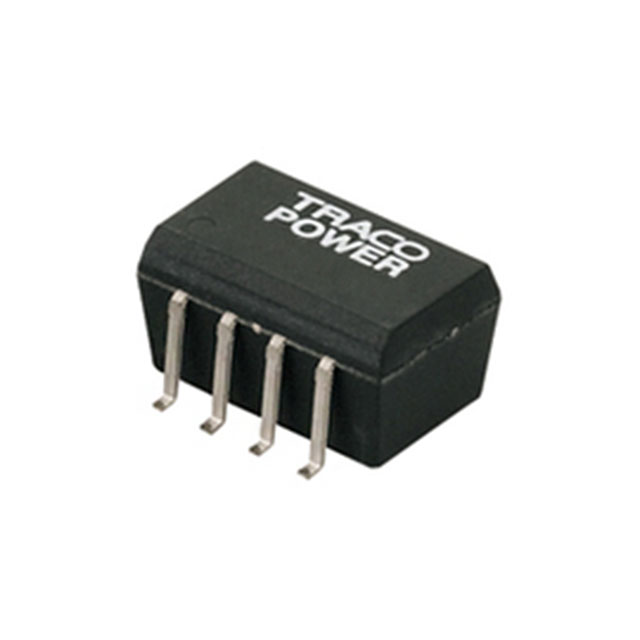

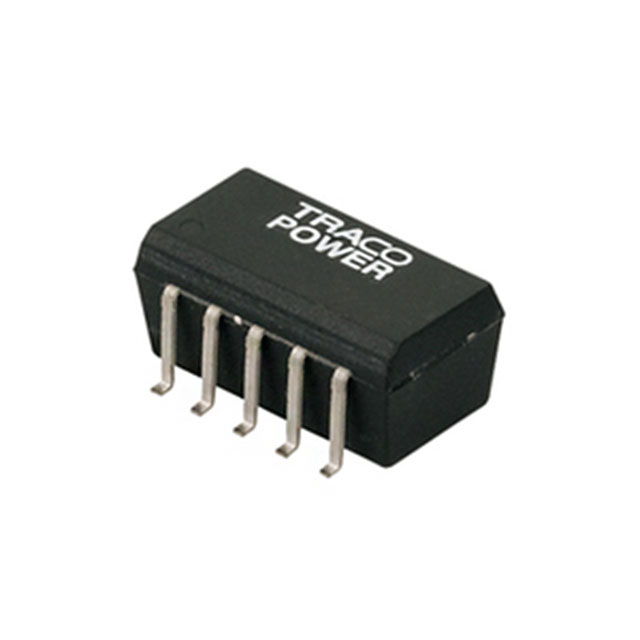

| Part Number | TSM 2415S | TSM 2405D | TSM 2405S | TSM 2409S |
| Manufacturer | Traco Power | Traco Power | Traco Power | Traco Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 15V 1W | DC DC CONVERTER +/-5V 1W | DC DC CONVERTER 5V 1W | DC DC CONVERTER 9V 1W |
| Series | Traco Power | Traco Power | Traco Power | Traco Power |
| Packaging | Tube | Tube | Tube | Tube |
