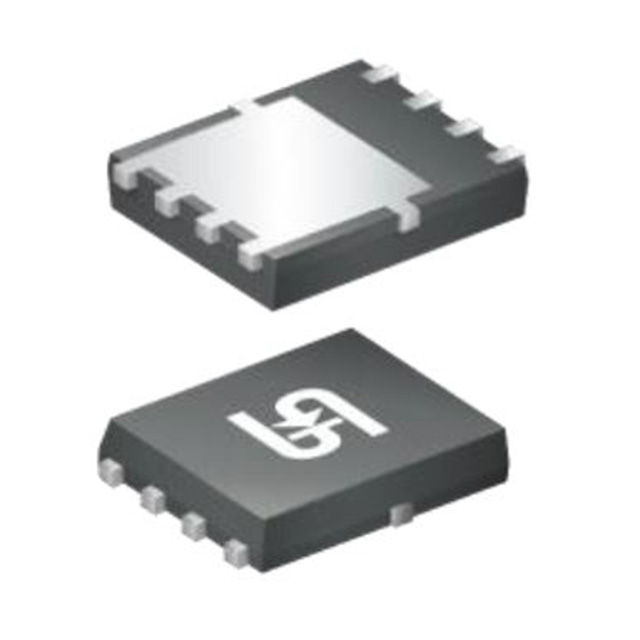

lmages are for reference only.TSM018NB03CR
30V, 194A, SINGLE N-CHANNEL POW
Datasheet8-PowerTDFN
33,558 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 29A (Ta), 194A (Tc) 3.1W (Ta), 136W (Tc) Surface Mount 8-PDFN (5x6)
TSM018NB03CR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 29A (Ta), 194A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.8mOhm @ 29A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7252 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta), 136W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PDFN (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | TSM018 |
| Gate Charge (Qg) (Max) @ Vgs | 120 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | TSM018NA03CR RLG | TSM018NB03CR RLG | TSM250NB06LCV RGG | TSM090N03CP ROG |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 30V 185A 8PDFN | MOSFET N-CH 30V 29A/194A 8PDFN | 60V, 27A, SINGLE N-CHANNEL POWER | MOSFET N-CHANNEL 30V 50A TO252 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
