TSM085NB03CV
lmages are for reference only.TSM085NB03CV
30V, 58A, SINGLE N-CHANNEL
Datasheet8-PowerWDFN
27,946 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 11A (Ta), 58A (Tc) 1.92W (Ta), 52W (Tc) Surface Mount 8-PDFN (3.15x3.1)

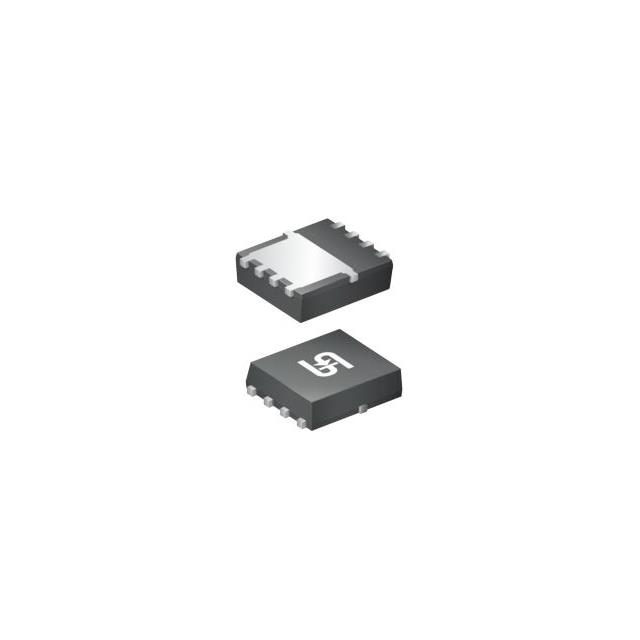

TSM085NB03CV
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 58A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8.5mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1101 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.92W (Ta), 52W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PDFN (3.15x3.1) |
| Package / Case | 8-PowerWDFN |
| Base Product Number | TSM085 |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | TSM085NB03CV RGG | TSM085N03PQ33 | TSM085N03PQ33 RGG | TSM085P03CS |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 30V, 58A, SINGLE N-CHANNEL POWER | 30V, 52A, SINGLE N-CHANNEL POWER | MOSFET N-CH 30V 52A 8PDFN | -30, -34, SINGLE P-CHANNEL |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
