TSM2NB60CH
lmages are for reference only.TSM2NB60CH
600V, 2A, SINGLE N-CHANNEL POWER
DatasheetTO-251-3 Short Leads, IPAK, TO-251AA
80,727 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 600 V 2A (Tc) 44W (Tc) Through Hole TO-251 (IPAK)
TSM2NB60CH
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4.4Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 249 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 44W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-251 (IPAK) |
| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Base Product Number | TSM2 |
| Gate Charge (Qg) (Max) @ Vgs | 9.4 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

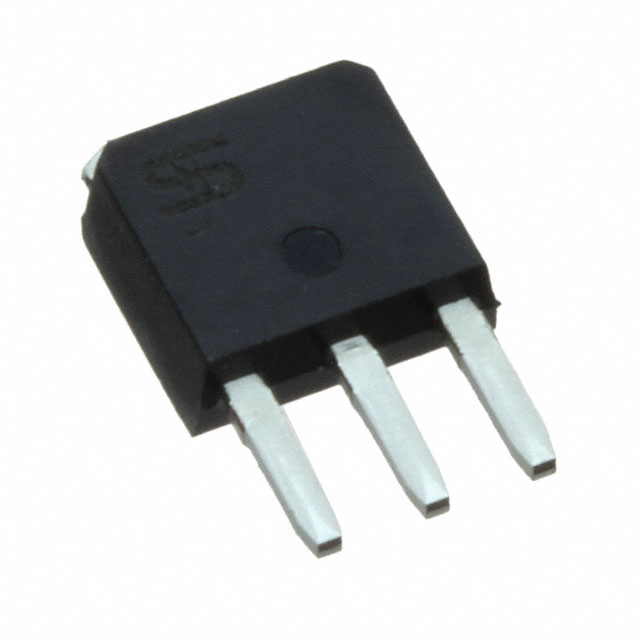

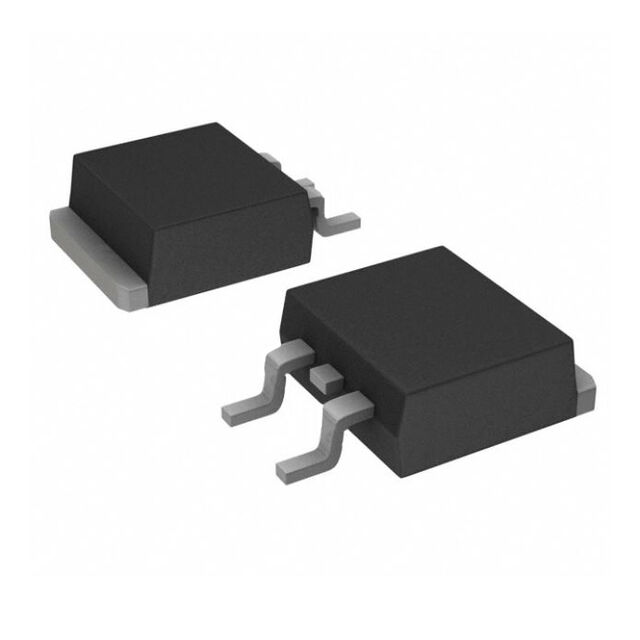

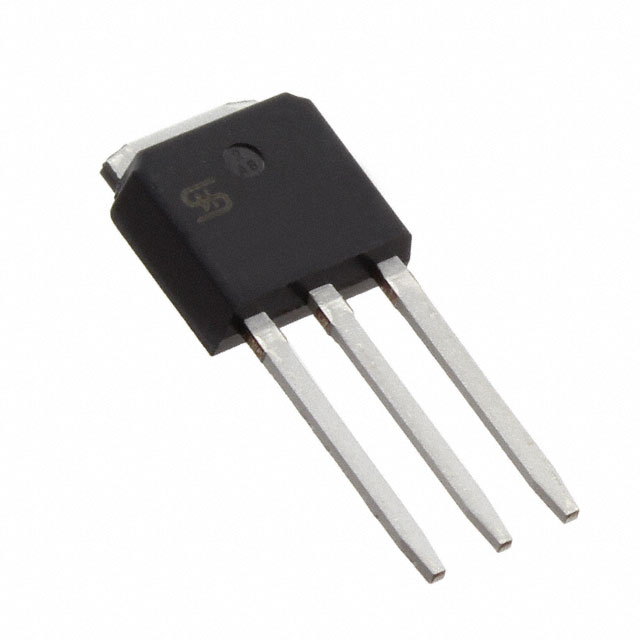

| Part Number | TSM2NB60CH C5G | TSM2NB60CP | TSM2NB60CP ROG | TSM2NB65CH X0G |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CHANNEL 600V 2A TO251 | 600V, 2A, SINGLE N-CHANNEL POWER | MOSFET N-CHANNEL 600V 2A TO252 | MOSFET N-CHANNEL 650V 2A TO251 |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
