TSM3N100CP ROG

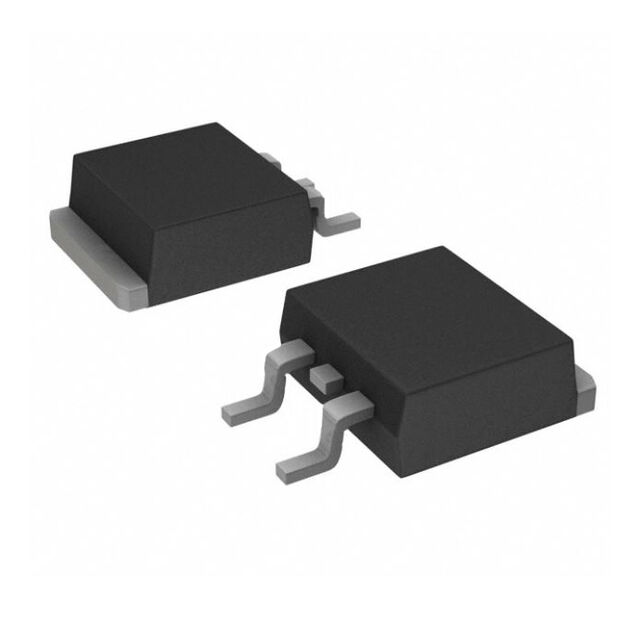

lmages are for reference only.TSM3N100CP ROG
MOSFET N-CH 1000V 2.5A TO252
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
26,262 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 1000 V 2.5A (Tc) 99W (Tc) Surface Mount TO-252 (DPAK)
TSM3N100CP ROG
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 6Ohm @ 1.25A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 664 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 99W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 (DPAK) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | TSM3 |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | TSM300NB06CR RLG | TSM300NB06LCV | TSM300NB06LCV RGG | TSM301K12CQ RFG |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 60V 6A/27A 8PDFN | 60V, 24A, SINGLE N-CHANNEL POWER | 60V, 24A, SINGLE N-CHANNEL POWER | MOSFET P-CH 20V 4.5A 6TDFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
