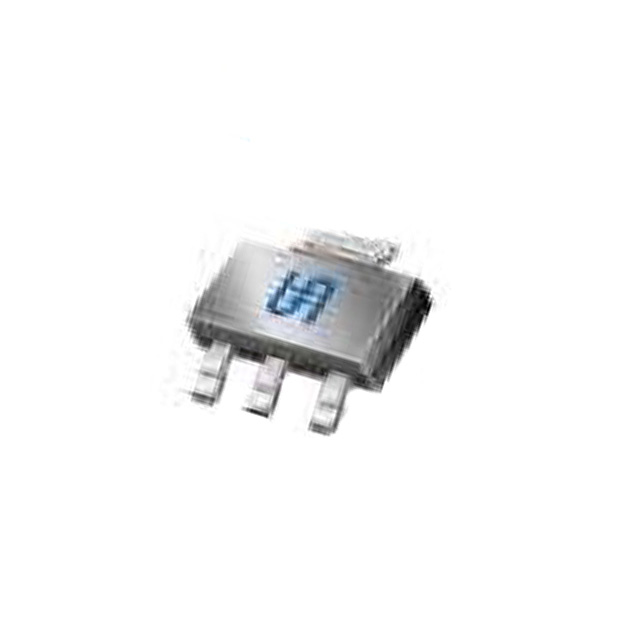

TSM900N06CW
lmages are for reference only.TSM900N06CW
MOSFET N-CHANNEL 60V 6A SOT223
DatasheetTO-261-4, TO-261AA
69,266 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 60 V 6A (Tc) 7.8W (Tc) Surface Mount SOT-223
TSM900N06CW
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 525 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 7.8W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-223 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | TSM900 |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |

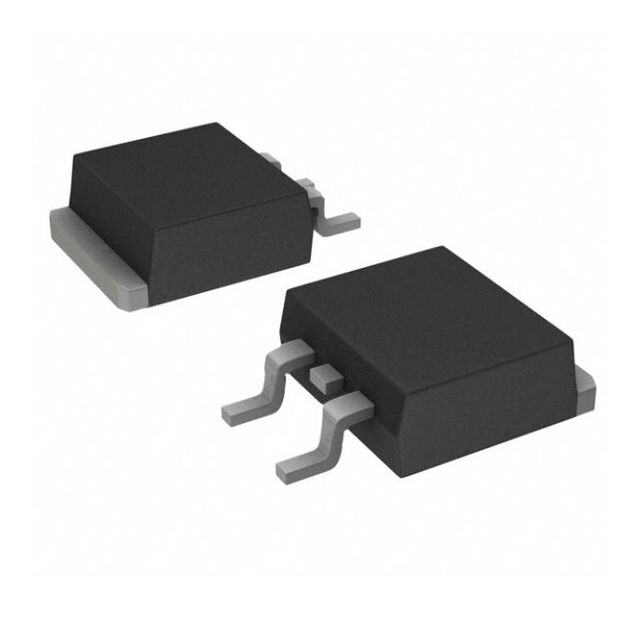

| Part Number | TSM900N06CH | TSM900N06CH X0G | TSM900N06CP | TSM900N06CP ROG |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 60V, 11A, SINGLE N-CHANNEL POWER | MOSFET N-CHANNEL 60V 11A TO251 | 60V, 11A, SINGLE N-CHANNEL POWER | MOSFET N-CHANNEL 60V 11A TO252 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
