TSMF1000
lmages are for reference only.TSMF1000
EMITTER IR 890NM 100MA 2SMD
Datasheet2-SMD, Z-Bend
93,787 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Infrared (IR) Emitter 890nm 1.3V 100mA 2.5mW/sr @ 20mA 34° 2-SMD, Z-Bend
TSMF1000
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | TSMF1000 |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 2.5mW/sr @ 20mA |
| Wavelength | 890nm |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 34° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Z-Bend |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

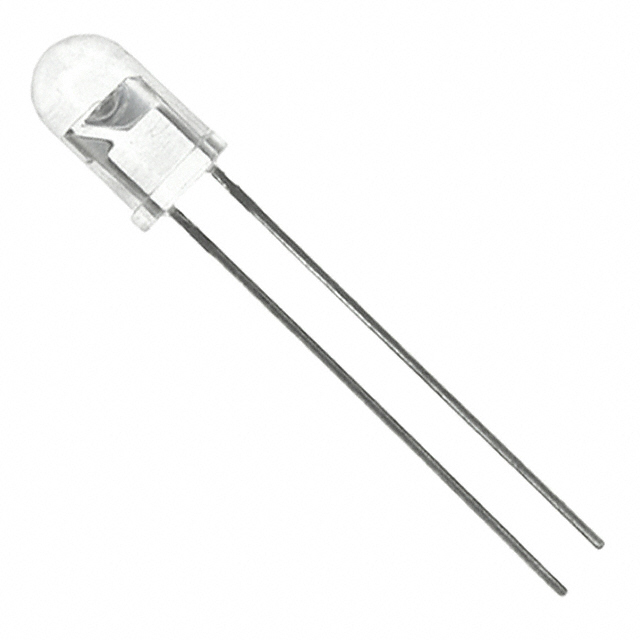

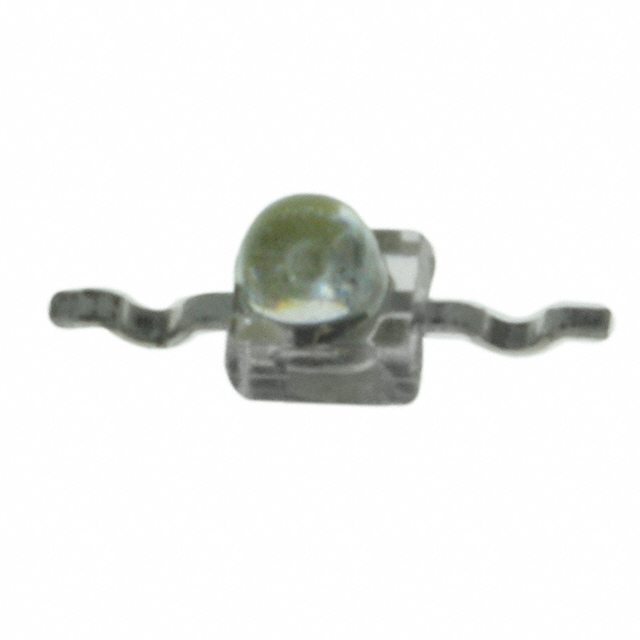

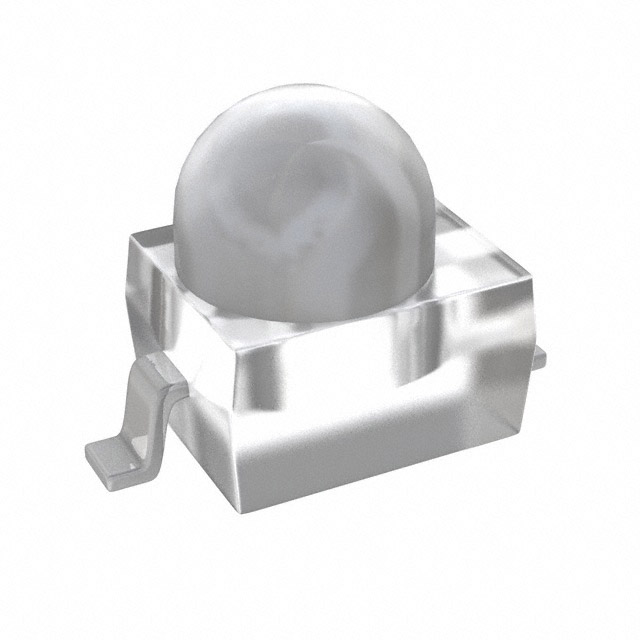

| Part Number | TSMF1020 | TSMF1030 | TSML1040 | TSHG8400 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | EMITTER IR 890NM 100MA SMD | EMITTER IR 890NM 100MA SMD | EMITTER IR 940NM 100MA AXIAL | EMITTER IR 830NM 100MA RADIAL |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk |
