TTETTLJANF-16.384000

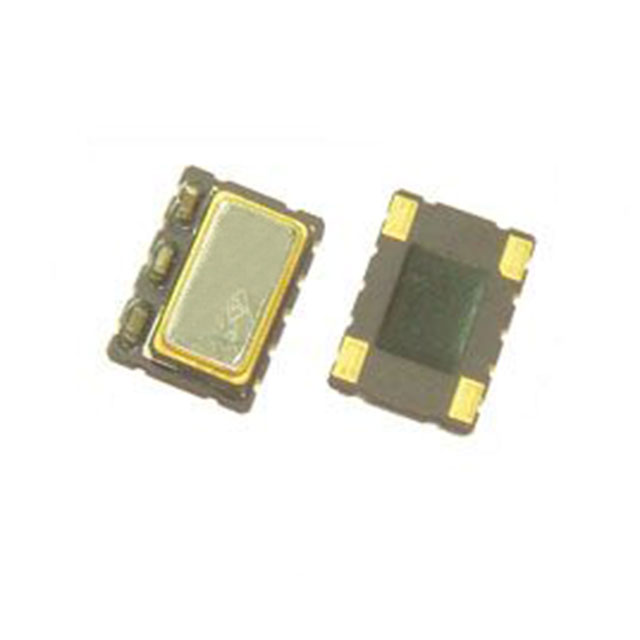

lmages are for reference only.Payment Methods
Delivery Services
16.384 MHz TCXO CMOS Oscillator 3.3V 4-SMD, No Lead Exposed Pad
TTETTLJANF-16.384000
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Taitien |
| Series | TT |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | TCXO |
| Frequency | 16.384 MHz |
| Function | - |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±4.6ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 6mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead Exposed Pad |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | TTETTLJANF-16.000000 | TTETTLJANF-10.000000 | TTETTLJANF-12.800000 | TTETTLJANF-20.000000 |
| Manufacturer | Taitien | Taitien | Taitien | Taitien |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC TCXO 16.0000MHZ CMOS | XTAL OSC TCXO 10.0000MHZ CMOS | XTAL OSC TCXO 12.8000MHZ CMOS | XTAL OSC TCXO 20.0000MHZ CMOS |
| Series | Taitien | Taitien | Taitien | Taitien |
| Packaging | Strip | Strip | Strip | Strip |
