TUC UBM-P 5A 250V (PF)
lmages are for reference only.Payment Methods
Delivery Services
5 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
TUC UBM-P 5A 250V (PF)
| Category | Circuit Protection - Fuses - |
| Manufacturer | Conquer |
| Series | UBM-P |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Fuse Type | Cartridge, Ceramic |
| Current Rating (Amps) | 5 A |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | - |
| Response Time | Fast Blow |
| Package / Case | 5mm x 20mm (Axial) |
| Breaking Capacity @ Rated Voltage | 1.5kA |
| Melting I²t | 27.63 |
| Approval Agency | CCC, cURus, KC, PSE, TUV |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Base Product Number | - |
| DC Cold Resistance | 0.0185 Ohms |
| Product Attribute | .jpg "TUC UBM-P 8A 250V (PF)") |
 |
 |
 |

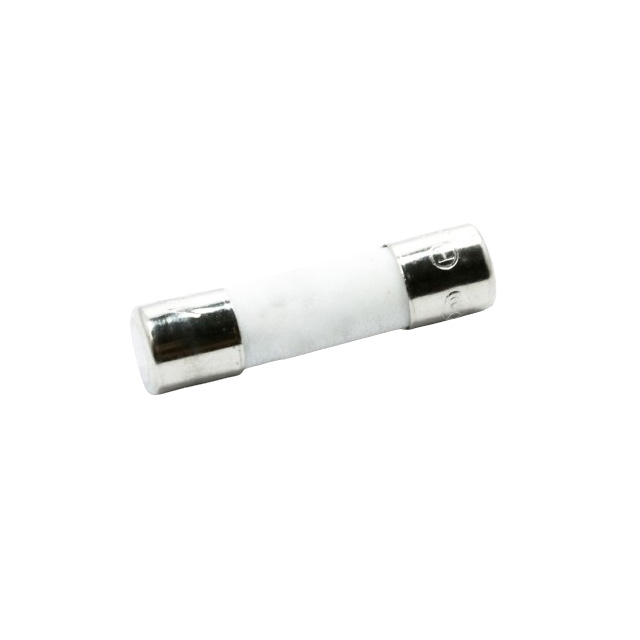

| Part Number | TUC UBM-P 8A 250V (PF) | TFLB-120A | TCD-3.15A | TFLB-40A |
| Manufacturer | Conquer | OptiFuse | OptiFuse | OptiFuse |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE CERAMIC 8A 250VAC 5X20MM | FUSE AUTO 120A 32VAC 32VDC | FUSE CERAMIC 3.15A 250VAC 5X20MM | FUSE AUTO 40A 32VAC 32VDC |
| Series | Conquer | OptiFuse | OptiFuse | OptiFuse |
| Packaging | Bulk | Bulk | Bulk | Bulk |
