TW048Z65C,S1F
lmages are for reference only.TW048Z65C,S1F
G3 650V SIC-MOSFET TO-247-4L 48
DatasheetTO-247-4
56,918 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 40A (Tc) 132W (Tc) Through Hole TO-247-4L(X)
TW048Z65C,S1F
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Rds On (Max) @ Id, Vgs | 69mOhm @ 20A, 18V |
| Vgs(th) (Max) @ Id | 5V @ 1.6mA |
| Vgs (Max) | +25V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1362 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 132W (Tc) |
| Operating Temperature | 175°C |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-4L(X) |
| Package / Case | TO-247-4 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 41 nC @ 18 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TW015N120C,S1F | TW015N65C,S1F | TW015Z120C,S1F | TW015Z65C,S1F |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

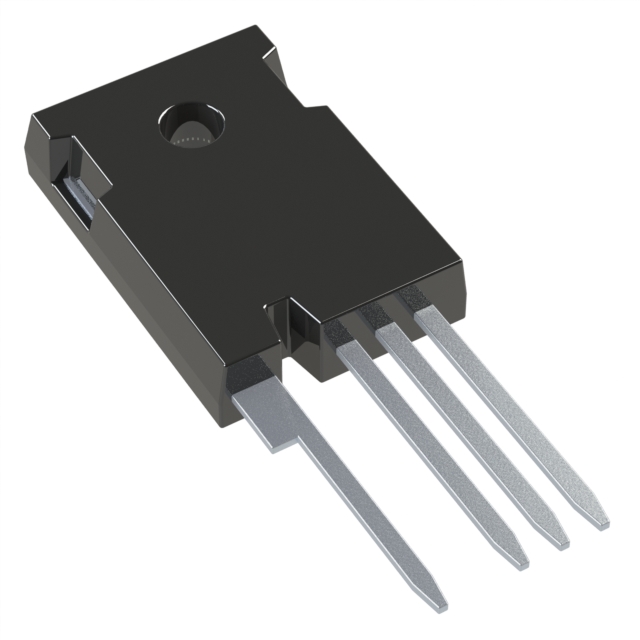

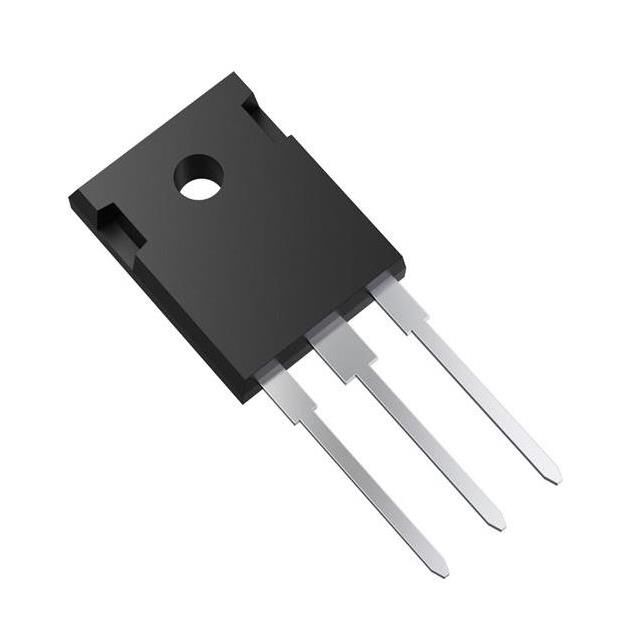

| Description | G3 1200V SIC-MOSFET TO-247 15MO | G3 650V SIC-MOSFET TO-247 15MOH | G3 1200V SIC-MOSFET TO-247-4L 1 | G3 650V SIC-MOSFET TO-247-4L 15 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
