TWR-3.3/4-15/250-D24-C
lmages are for reference only.TWR-3.3/4-15/250-D24-C
DC DC CONVERTER 3.3V +/-15V 20W
Datasheet7-DIP Module
11,323 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 3 Output 3.3V 15V -15V 4A, 250mA, 250mA 18V - 36V Input
TWR-3.3/4-15/250-D24-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | TWR 22W |
| Packaging | Tube |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 3 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | -15V |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A, 250mA, 250mA |
| Power (Watts) | 20 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | TWR-3.3 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

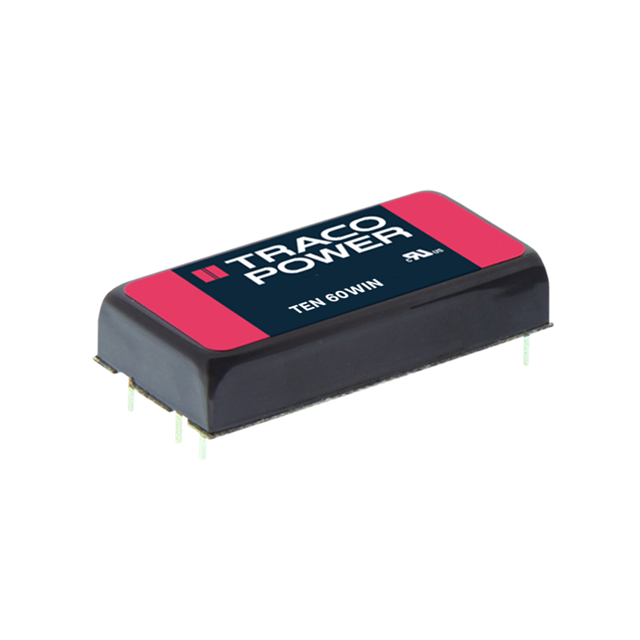

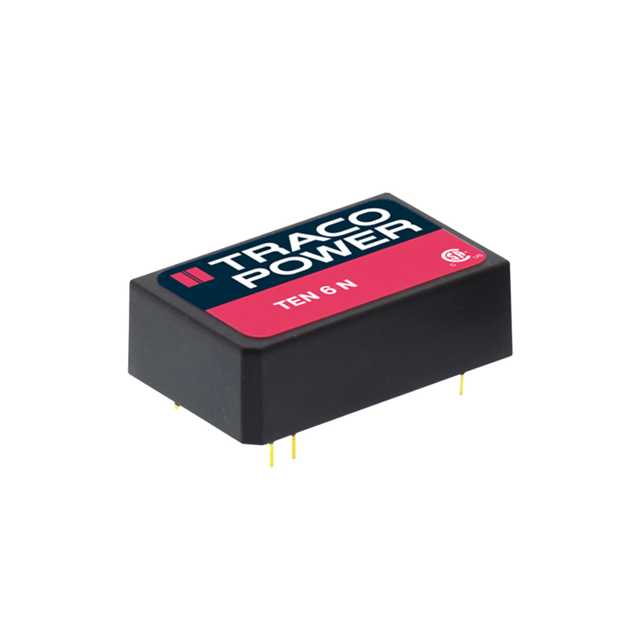

| Part Number | TWR-3.3/4-12/300-D12-C | TEN 6-1213N | THL 3-4821WISM | TEN 60-4815WIN |
| Manufacturer | Murata Power Solutions Inc. | Traco Power | Traco Power | Traco Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER 3.3V +/-12V 20W | DC DC CONVERTER 15V 6W | DC DC CONVERTER +/-5V 3W | DC DC CONVERTER 24V 60W |
| Series | Murata Power Solutions Inc. | Traco Power | Traco Power | Traco Power |
| Packaging | Tube | Tube | Tube | Tube |
