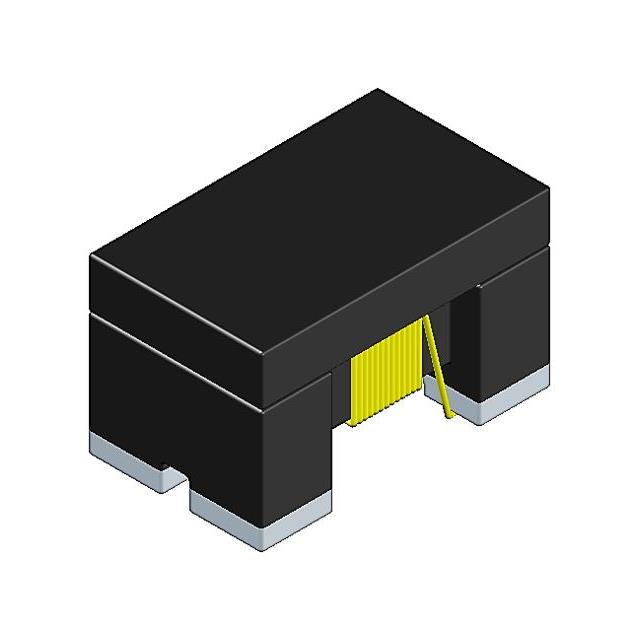

TXF 453229NF-121
lmages are for reference only.TXF 453229NF-121
120UH LAN PULSE TRANSFORMER 1CT:
Datasheet-
55,345 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120µH LAN Pulse Transformer 1:1 Surface Mount
TXF 453229NF-121
| Category | Transformers - Pulse Transformers - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | TXF 4532 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Transformer Type | LAN |
| Inductance | 120µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:1 |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.181" L x 0.128" W (4.60mm x 3.25mm) |
| Height - Seated (Max) | 0.114" (2.90mm) |
| Operating Temperature | -40°C ~ 85°C |
| Weight | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | TXF 453229NF-381 | T60403K5026X023 | T60403D4721X037 | T-1485SCT |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | VACUUMSCHMELZE | VACUUMSCHMELZE | iNRCORE, LLC |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ||
| Description | 380UH LAN PULSE TRANSFORMER 1CT | 5026X023 | 4721X037 | XFMR DUAL 1485M BAUD |
| Series | TXF 4532 | - | - | Copperhead™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Box | Box | Bulk |
