TYS3012150M-10

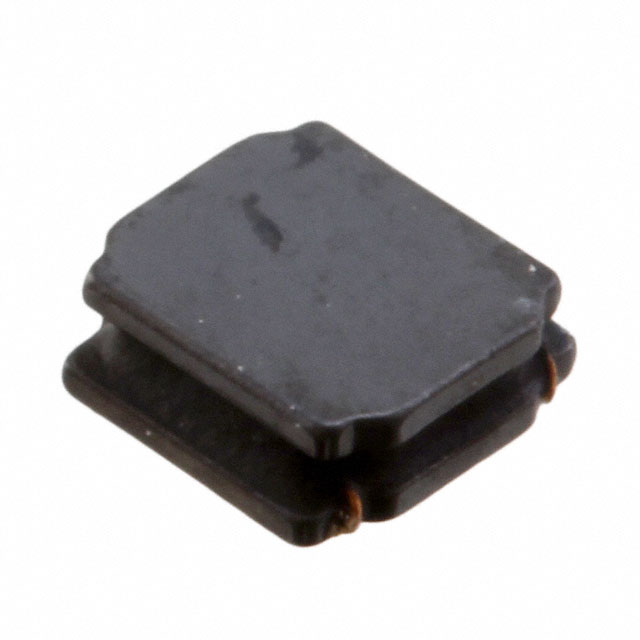

lmages are for reference only.TYS3012150M-10
FIXED IND 15UH 710MA 460MOHM SMD
DatasheetNonstandard
61,576 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 µH Shielded Drum Core, Wirewound Inductor 710 mA 598mOhm Max Nonstandard
TYS3012150M-10
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | TYS3012 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 710 mA |
| Current - Saturation (Isat) | 450mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 598mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 27MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 3012 |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
 |
| Part Number | TYS3012150M-10 | TYS3012100M-10 | TYS3012101M-10 | TYS30121R0N-10 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 15UH 710MA 460MOHM SMD | FIXED IND 10UH 830MA 265MOHM SMD | FIXED IND 100UH 250MA 2.86OHM SM | FIXED IND 1UH 2.2A 40 MOHM SMD |
| Series | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
