TYS60281R0N-10
lmages are for reference only.TYS60281R0N-10
FIXED IND 1UH 5.2A 10 MOHM SMD
DatasheetNonstandard
71,024 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Shielded Inductor 5.2 A 10mOhm Nonstandard
TYS60281R0N-10
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | TYS6028 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 5.2 A |
| Current - Saturation (Isat) | 5.75A |
| Shielding | Shielded |
| DC Resistance (DCR) | 10mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 70MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

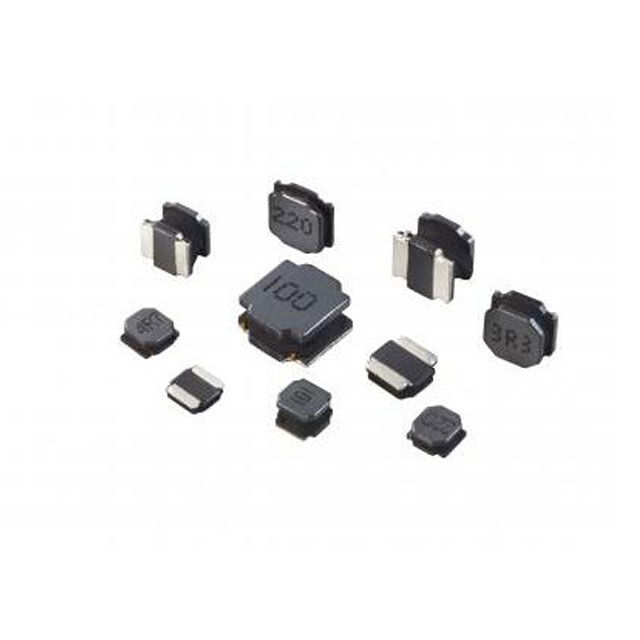

| Part Number | TYS6028100M-10 | TYS6028101M-10 | TYS6028150M-10 | TYS60281R3N-10 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 1.95A 72 MOHM SMD | FIXED IND 100UH 700MA 500MOHM SM | FIXED IND 15UH 1.45A 125MOHM SMD | FIXED IND 1.3UH 4.58A 16.9 MOHM |
| Series | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
