TZX9V1E-TR

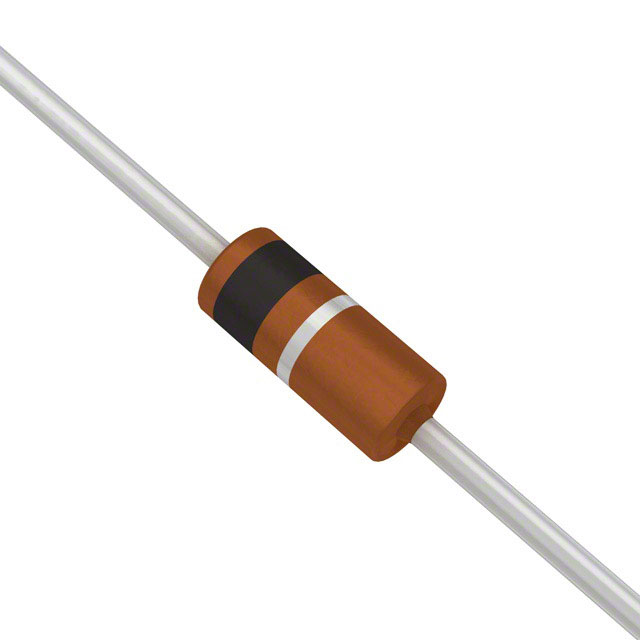

lmages are for reference only.TZX9V1E-TR
DIODE ZENER 9.1V 500MW DO204AH
DatasheetDO-204AH, DO-35, Axial
76,182 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 9.1 V 500 mW Through Hole DO-204AH (DO-35)
TZX9V1E-TR
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TZX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 9.1 V |
| Tolerance | - |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 20 Ohms |
| Current - Reverse Leakage @ Vr | 1 µA @ 6.8 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-204AH (DO-35) |
| Base Product Number | TZX9V1 |
| Product Attribute |  |
 |
|
 |
| Part Number | TZX9V1E-TAP | TZX9V1A-TAP | TZX9V1A-TR | TZX9V1B-TAP |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 9.1V 500MW DO204AH | DIODE ZENER 9.1V 500MW DO204AH | DIODE ZENER 9.1V 500MW DO204AH | DIODE ZENER 9.1V 500MW DO204AH |
| Series | TZX | TZX | TZX | TZX |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Box (TB) |
