UB-MC5ABR3-SD204-4S-TB NMP
lmages are for reference only.UB-MC5ABR3-SD204-4S-TB NMP
CONN RCPT MICRO USB AB 5P SMD RA
Datasheet-
67,446 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB - micro AB Receptacle Connector 5 Position Surface Mount, Right Angle
UB-MC5ABR3-SD204-4S-TB NMP
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | JST Sales America Inc. |
| Series | UB |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Connector Type | USB - micro AB |
| Number of Contacts | 5 |
| Gender | Receptacle |
| Specifications | - |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | Solder Retention |
| Ingress Protection | - |
| Operating Temperature | -30°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 0.5A, 1A, 1.8A |
| Voltage - Rated | 30VAC/DC |
| Mating Cycles | 10000 |
| Shielding | Unshielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Gray |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

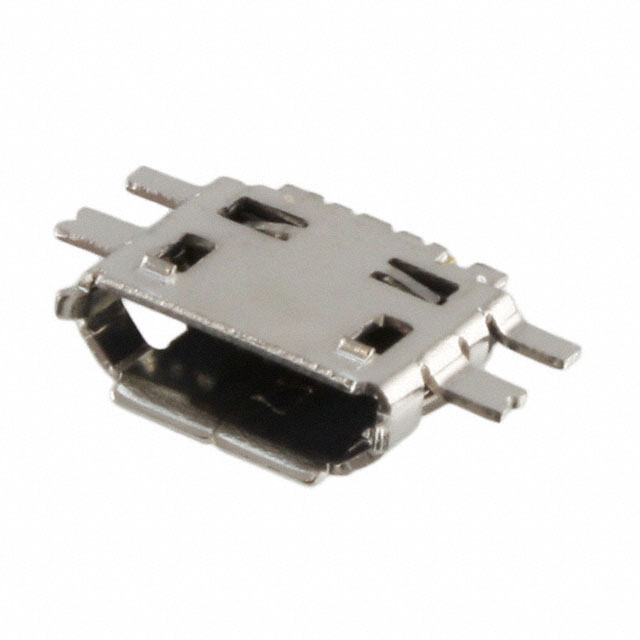

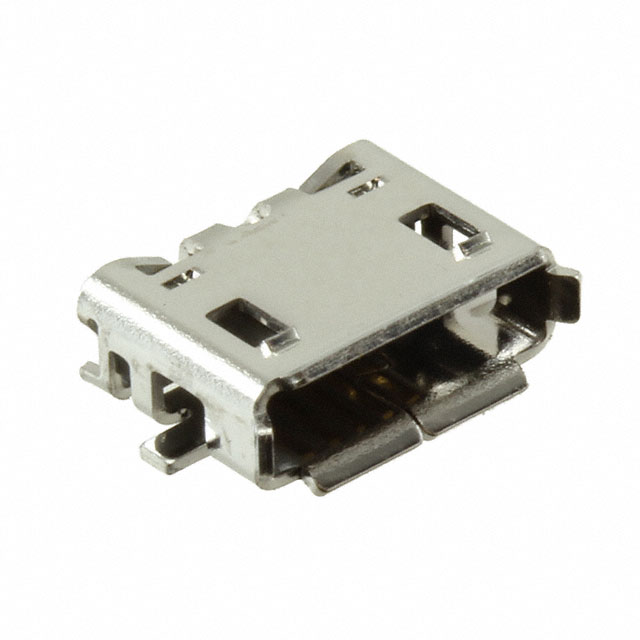

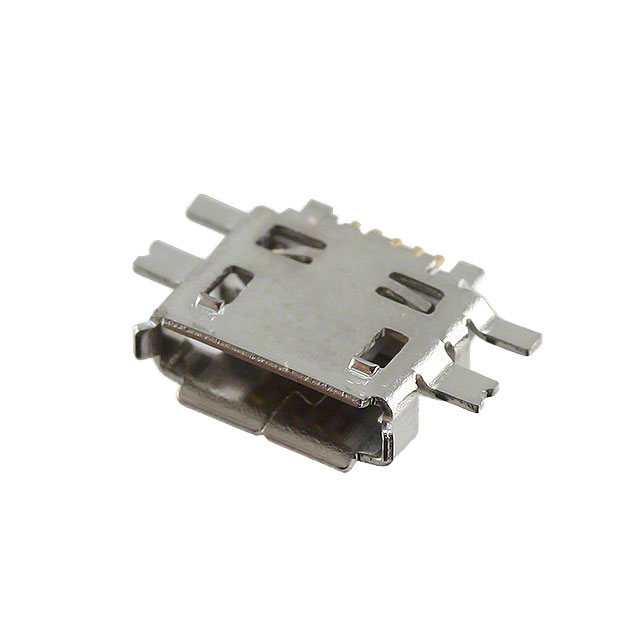

| Part Number | UB-MC5ABR3-M04-4S-TB-1 NMP | UB-MC5ABR3-SD204-4S-1-TB NMP | UB-MC5AB2R3-RS04-4S-1-TB NMP | UB-MC5BR3-M04-4S-TB NMP |
| Manufacturer | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. |
| RoHS Status | ROHS3 Compliant | |||

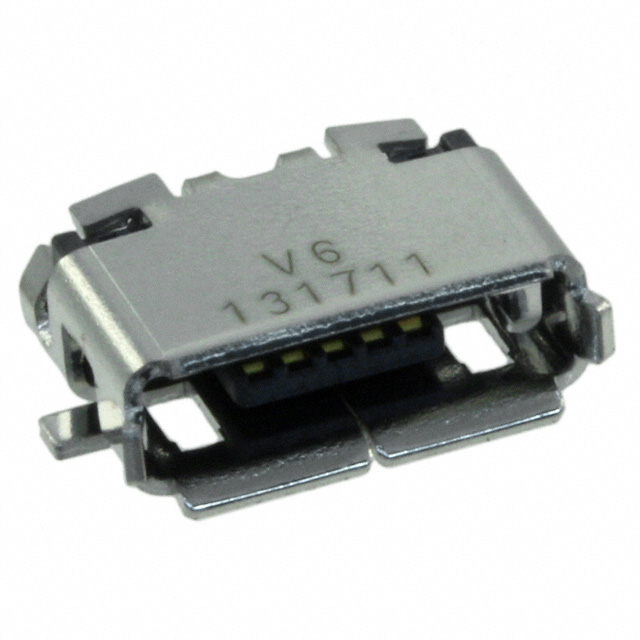

| Description | CONN RCPT MICRO USB AB 5POS SMD | CONN RCPT MICRO USB AB 5P SMD RA | CONN RCPT MICRO USB AB 5P SMD RA | CONN RCPT MICRO USB B 5POS SMD |
| Series | UB | UB | UB | UB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
