Product CatalogPart Number
UC2861N
Manufacturer
UnitrodeDescription
IC OFFLINE SWITCH MULT TOP 16DIP
Datasheet
DatasheetPackage
16-DIP (0.300", 7.62mm)
In Stock
49,454 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UC2861N
UC2861N
lmages are for reference only.Payment Methods
Delivery Services
Converter Offline Full-Bridge, Half-Bridge, Push-Pull Topology 10kHz ~ 1MHz 16-PDIP
Quick Inquiry
UC2861N
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Unitrode |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Topology | Full-Bridge, Half-Bridge, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 10.5V ~ 22V |
| Duty Cycle | - |
| Frequency - Switching | 10kHz ~ 1MHz |
| Power (Watts) | - |
| Fault Protection | - |
| Control Features | Soft Start |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Mounting Type | Through Hole |
| Base Product Number | UC2861 |
| Voltage - Start Up | 16.5 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

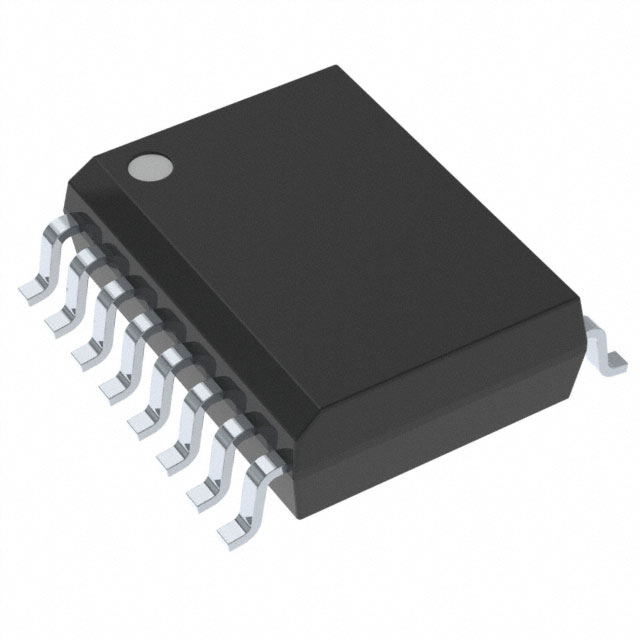

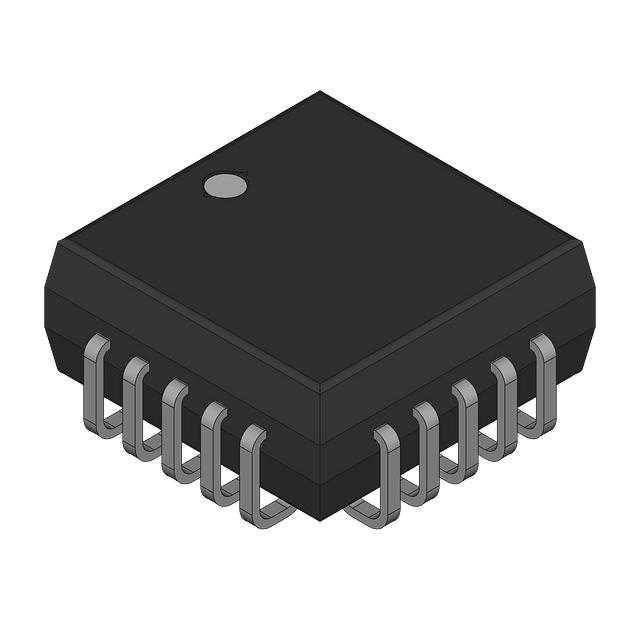

| Part Number | UC2861DW | UC2861DW | UC2861N | UC2861Q |
| Manufacturer | Texas Instruments | Unitrode | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC OFFLINE SW MULT TOP 16SOIC | IC OFFLINE SW MULT TOP 16SOIC | IC OFFLINE SWITCH MULT TOP 16DIP | IC OFFLINE SW MULT TOP 20PLCC |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tube | Tube |
