UCC21222D
lmages are for reference only.UCC21222D
IC GATE DRVR HALF-BRIDGE 16SOIC
Datasheet16-SOIC (0.154", 3.90mm Width)
94,966 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half-Bridge Gate Driver IC CMOS/TTL 16-SOIC
UCC21222D
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 3V ~ 5.5V |
| Logic Voltage - VIL, VIH | 1.25V, 1.6V |
| Current - Peak Output (Source, Sink) | 4A, 6A |
| Input Type | CMOS/TTL |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 5ns, 6ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | UCC21222 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

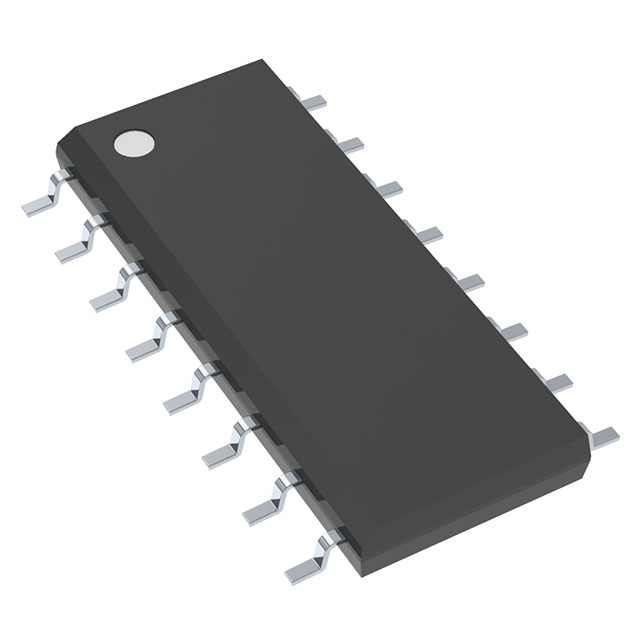

| Part Number | UCC21222DR | UCC21222QDQ1 | UCC21222QDRQ1 | UCC21530DWK |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC GATE DRVR HALF-BRIDGE 16SOIC | IC GATE DRVR HALF-BRIDGE 16SOIC | IC GATE DRVR HALF-BRIDGE 16SOIC | IC GATE DRVR HALF-BRIDGE 14SOIC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
