UCC27222PWPG4
lmages are for reference only.UCC27222PWPG4

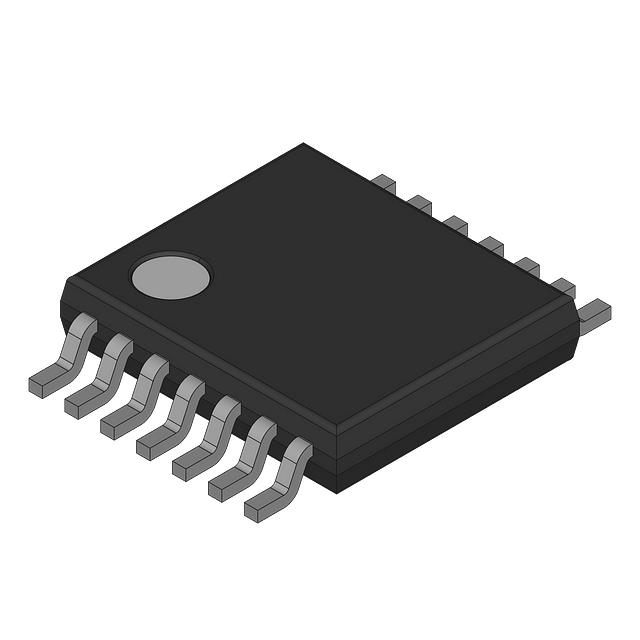

IC GATE DRVR HALF-BRIDG 14HTSSOP
Datasheet14-PowerTSSOP (0.173", 4.40mm Width)
82,112 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half-Bridge Gate Driver IC Non-Inverting 14-HTSSOP
UCC27222PWPG4
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 3.7V ~ 20V |
| Logic Voltage - VIL, VIH | 0.7V, 2.6V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 17ns, 17ns |
| Operating Temperature | -55°C ~ 115°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-HTSSOP |
| Base Product Number | UCC27222 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | UCC27222PWP | UCC27222PWPR | UCC27222PWPR | UCC27221PWP |
| Manufacturer | Texas Instruments | Unitrode | Texas Instruments | Unitrode |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC GATE DRVR HALF-BRIDG 14HTSSOP | UCC27222 HIGH-EFFICIENCY PREDICT | IC GATE DRVR HALF-BRIDG 14HTSSOP | HALF BRIDGE BASED MOSFET DRIVER |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tape & Reel (TR) | Tube |
