UCC27284DRCR
lmages are for reference only.UCC27284DRCR
IC GATE DRVR HALF-BRIDGE 10VSON
Datasheet10-VFDFN Exposed Pad
34,226 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half-Bridge Gate Driver IC Non-Inverting 10-VSON (3x3)
UCC27284DRCR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 5.5V ~ 16V |
| Logic Voltage - VIL, VIH | 1.3V, 1.9V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 100 V |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

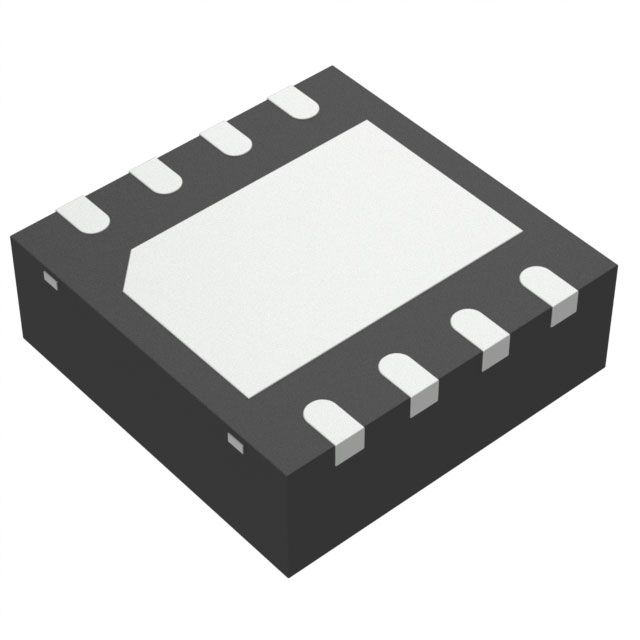

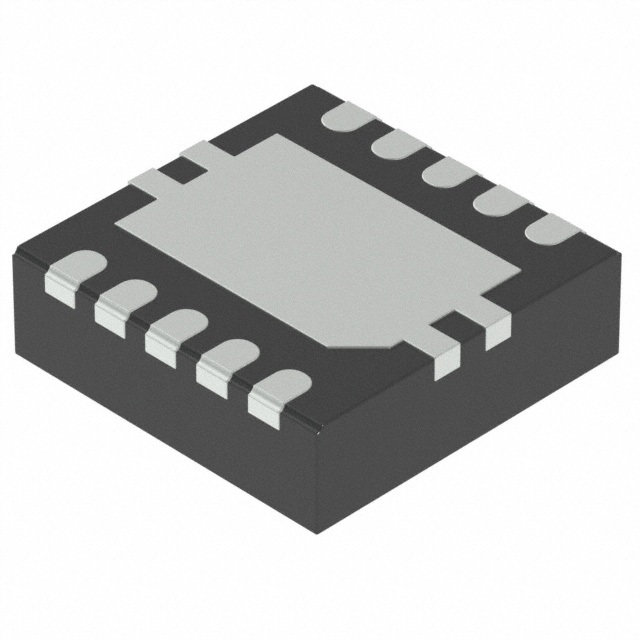

| Part Number | UCC27284DRCT | UCC27284DRMR | UCC27200AD | UCC27200ADDA |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC GATE DRVR HALF-BRIDGE 10VSON | IC GATE DRVR HALF-BRIDGE 8VDFN | IC GATE DRVR HALF-BRIDGE 8SOIC | IC GATE DRVR HALF-BRIDGE 8SOPWR |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
