UCC27424DGNG4

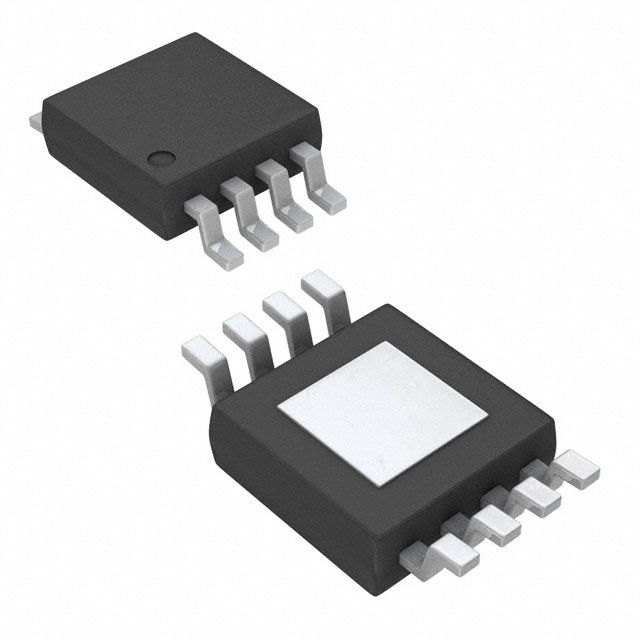

lmages are for reference only.UCC27424DGNG4
IC GATE DRVR LOW-SIDE 8MSOP
Datasheet8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
39,912 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Low-Side Gate Driver IC Non-Inverting 8-HVSSOP
UCC27424DGNG4
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4V ~ 15V |
| Logic Voltage - VIL, VIH | 1V, 2V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 20ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-HVSSOP |
| Base Product Number | UCC27424 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | UCC27424DGN | UCC27424DGNR | UCC27424DGNRG4 | UCC27423D |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC GATE DRVR LOW-SIDE 8MSOP | IC GATE DRVR LOW-SIDE 8MSOP | IC GATE DRVR LOW-SIDE 8MSOP | IC GATE DRVR LOW-SIDE 8SOIC |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube |
