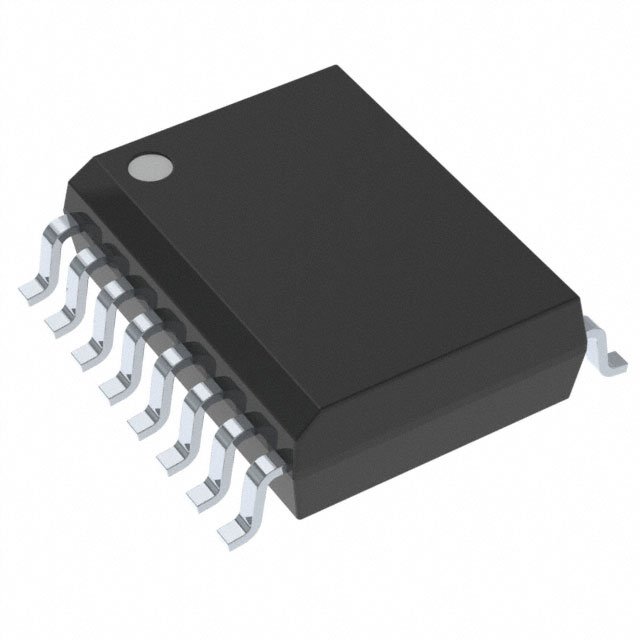

UCC3806DWTR
lmages are for reference only.Payment Methods
Delivery Services
Buck, Boost, Flyback, Forward Converter Regulator Positive, Isolation Capable Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-SOIC
UCC3806DWTR
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Unitrode |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Buck, Boost, Flyback, Forward Converter |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 14.5V |
| Frequency - Switching | 47kHz |
| Duty Cycle (Max) | 50% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | UCC3806 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | UCC3806DW | UCC3806DWG4 | UCC3806DWTR | UCC3800D |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG CTRLR MULT TOP 16SOIC | IC REG CTRLR MULT TOP 16SOIC | IC REG CTRLR MULT TOP 16SOIC | IC REG CTRLR MULT TOPOLOGY 8SOIC |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
