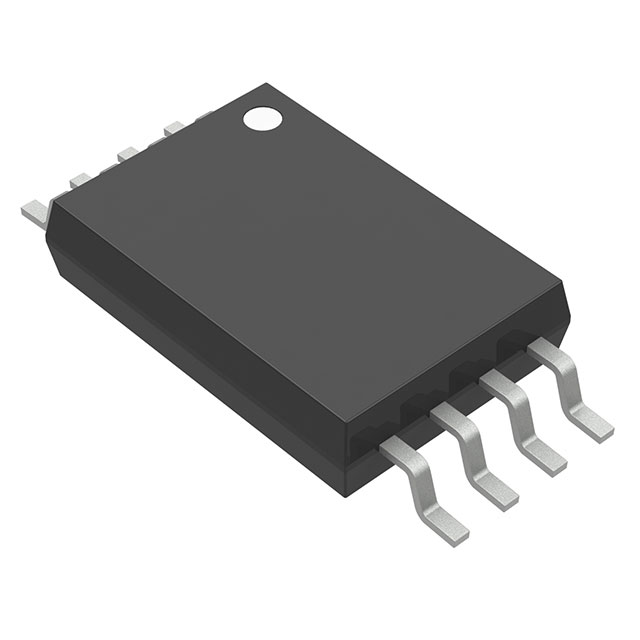

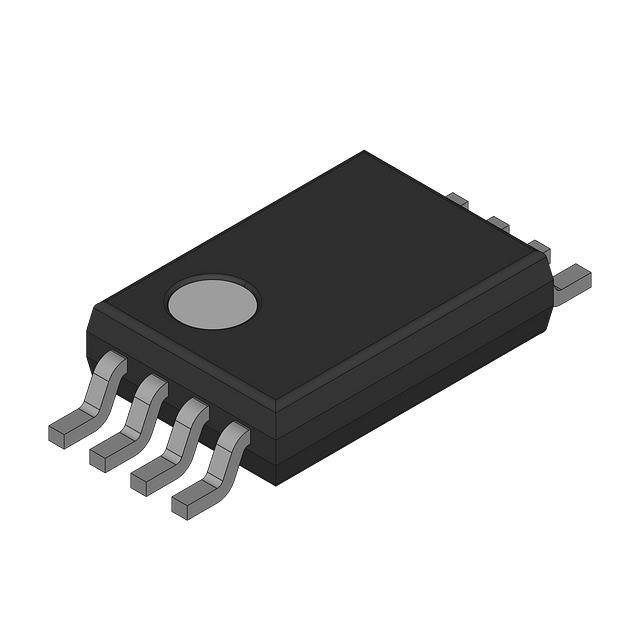

UCC3813PW-1
lmages are for reference only.Payment Methods
Delivery Services
Boost, Flyback, Forward Converter Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-TSSOP
UCC3813PW-1
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Unitrode |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, Forward Converter |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7.4V ~ 12V |
| Frequency - Switching | 46kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Base Product Number | UCC3813 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | UCC3813PW-0 | UCC3813PW-1 | UCC3813PW-2 | UCC3813PW-2 |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Unitrode |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC REG CTRLR MULT TOP 8TSSOP | IC REG CTRLR MULT TOP 8TSSOP | IC OFFLINE SW MULT TOP 8TSSOP | UCC3813-2 LOW POWER ECONOMY BICM |
| Series | - | - | - | * |
| Packaging | Tube | Tube | Tube | Bulk |
