UCH-12/4.2-D48N-C
lmages are for reference only.UCH-12/4.2-D48N-C
DC DC CONVERTER 12V 50W
Datasheet9-DIP Module, 1/2 Brick
60,727 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 4.2A 36V - 75V Input
UCH-12/4.2-D48N-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | UCH |
| Packaging | Tray |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4.2A |
| Power (Watts) | 50 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 90.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 9-DIP Module, 1/2 Brick |
| Size / Dimension | 2.40" L x 2.30" W x 0.40" H (61.0mm x 58.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | UCH-12 |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
 |

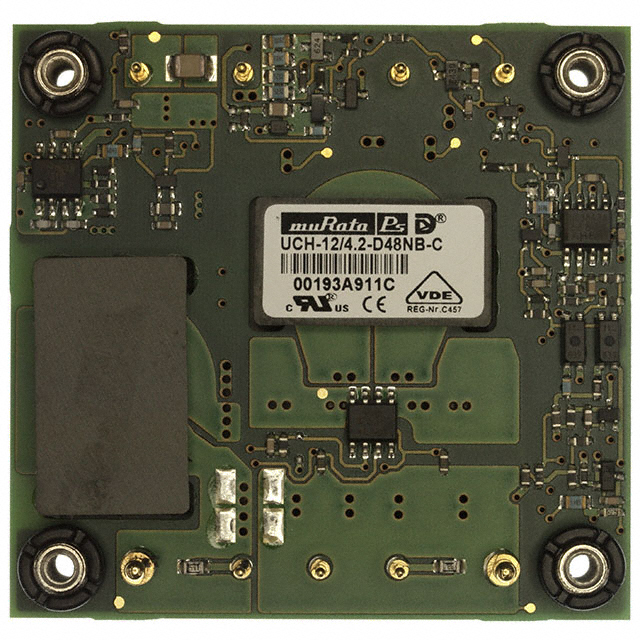

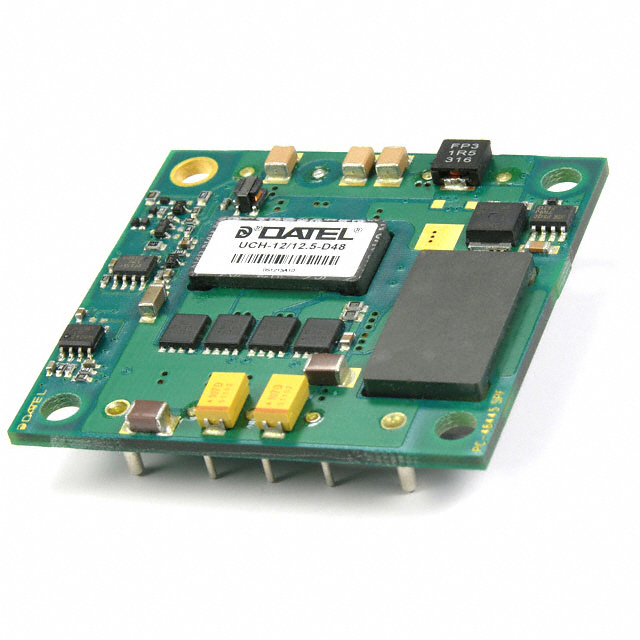

| Part Number | UCH-12/12.5-D48N-C | UCH-12/4.2-D48NB-C | UC10-24D15 | UC10-24S12 |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Adam Tech | Adam Tech |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DC DC CONVERTER 12V 150W | DC DC CONVERTER 12V 50W | DC-DC CONVERTER, ISOLATED MODULE | DC-DC CONVERTER, ISOLATED MODULE |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Adam Tech | Adam Tech |
| Packaging | Tray | Tube | Tube | Tube |
