UCLAMP0504A.TCT

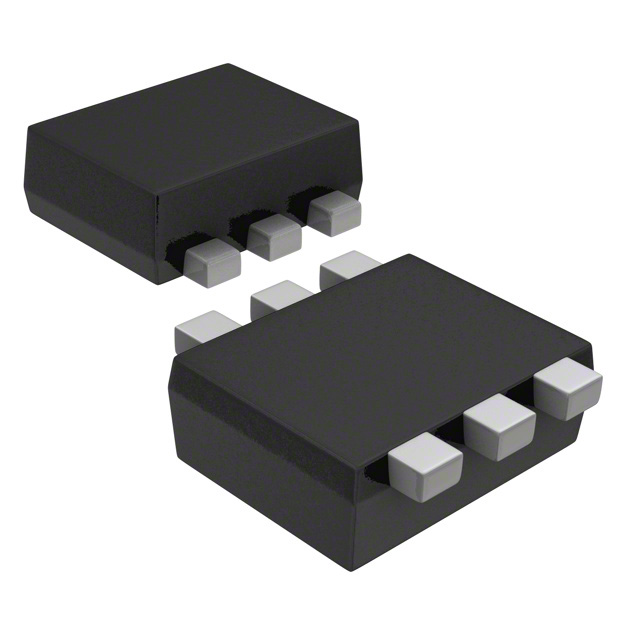

lmages are for reference only.UCLAMP0504A.TCT
TVS DIODE 5VWM 12VC SC89-6
DatasheetSOT-563, SOT-666
30,375 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12V Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount SC-89 (SOT-666)
UCLAMP0504A.TCT
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Semtech Corporation |
| Series | uClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000µs) | 7A (8/20µs) |
| Power - Peak Pulse | 100W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 60pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SC-89 (SOT-666) |
| Base Product Number | UCLAMP0504 |
| Unidirectional Channels | 4 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | UCLAMP0501H.TCT | UCLAMP0501P.TCT | UCLAMP0501P.TFT | UCLAMP0501T.TCT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 5VWM 12.5VC SOD523 | TVS DIODE 5VWM 12.5VC SLP1006P2 | 1-LINE, 5V, 160PF, ESD, SLP1006P | TVS DIODE 5VWM 12.5VC SLP1006P2T |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
