Product CatalogPart Number
UCP225PS24
Manufacturer
XP PowerDescription
AC/DC CONVERTER 24V 150W
Datasheet
DatasheetPackage
-
In Stock
62,946 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UCP225PS24
UCP225PS24

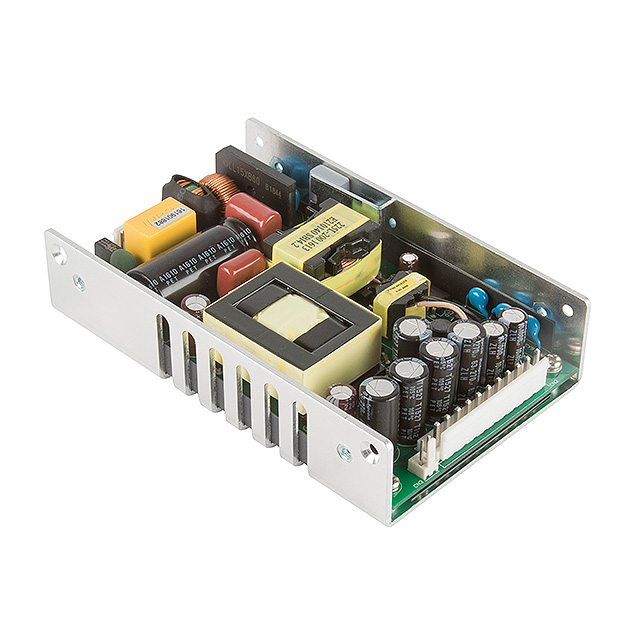

lmages are for reference only.Payment Methods
Delivery Services
Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Quick Inquiry
UCP225PS24
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | XP Power |
| Series | UCP225 (225W) |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 6.25 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 92% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.12" W x 1.18" H (127.0mm x 79.2mm x 29.2mm) |
| Approval Agency | CB, CE |
| Minimum Load Required | No |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 150W (225W Forced Air) |
| Features | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input |
| Standard Number | 62368-1 |
| Base Product Number | UCP225 |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | UCP225PS28 | UCP225PS12 | UCP225PS15 | UCP225PS48 |
| Manufacturer | XP Power | XP Power | XP Power | XP Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | AC/DC CONVERTER 28V 150W | AC/DC CONVERTER 12V 150W | AC/DC CONVERTER 15V 150W | AC/DC CONVERTER 48V 150W |
| Series | UCP225 (225W) | UCP225 (225W) | UCP225 (225W) | UCP225 (225W) |
| Packaging | Box | Box | Box | Box |
