UDH02-24S3P3
lmages are for reference only.UDH02-24S3P3
DC DC CONVERTER 3.3V 1.7W
Datasheet5-SIP Module, 4 Leads
62,676 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 500mA 18V - 36V Input
UDH02-24S3P3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | P-DUKE Technology |
| Series | UDH02 (2W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | 1.7 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 77% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 5-SIP Module, 4 Leads |
| Size / Dimension | 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
| Base Product Number | UDH02 |
| Voltage - Isolation | 1.6 kV |
| Product Attribute |  |
 |
 |
 |

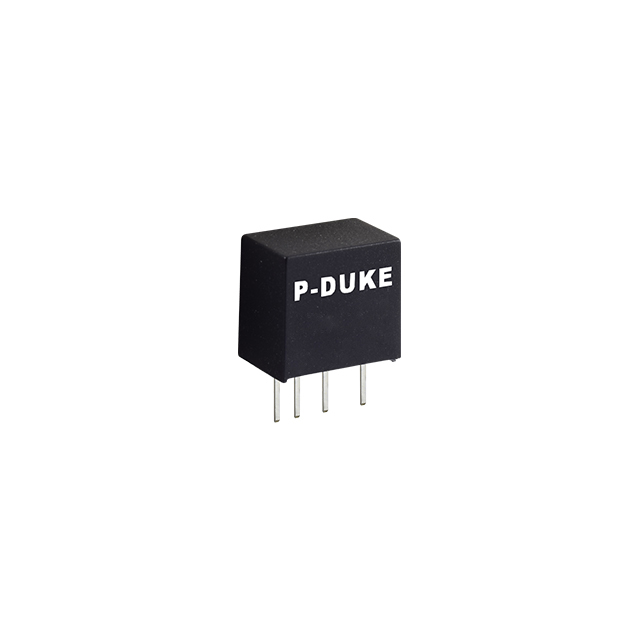

| Part Number | UDH02-12S05 | UDH02-24S05 | UDH01-05D12 | UDH01-05S05 |
| Manufacturer | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 2W | DC DC CONVERTER 5V 2W | DC DC CONVERTER +/-12V 1W | DC DC CONVERTER 5V 1W |
| Series | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| Packaging | Tube | Tube | Tube | Tube |
