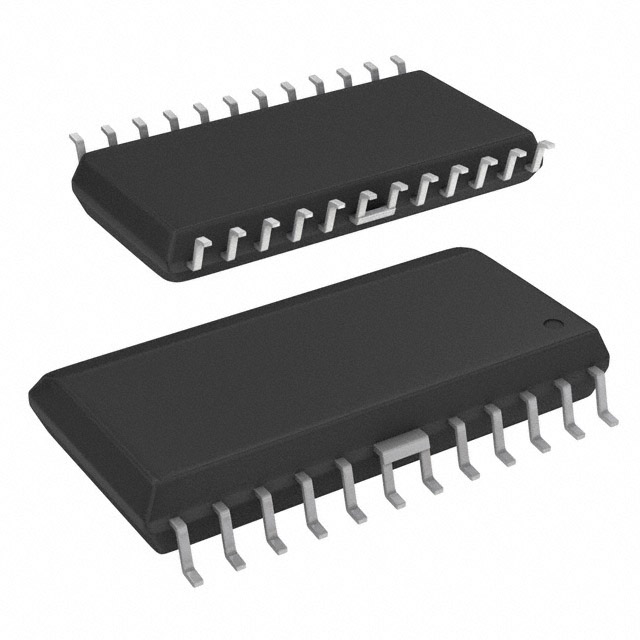

UDN2916LBTR
lmages are for reference only.UDN2916LBTR
IC MOTOR DRIVER BIPOLAR 24SOIC
Datasheet24-SOIC (0.295", 7.50mm Width)
16,931 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar Motor Driver Bipolar Parallel 24-SOIC
UDN2916LBTR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Motor Drivers-Controllers |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 750mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 45V |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Base Product Number | UDN2916 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | UDN2916LBTR | UDN2916LBTR-T | UDN2916LBTR-T | UDN2916LB |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | IC MOTOR DRIVER BIPOLAR 24SOIC | IC MOTOR DRIVER BIPOLAR 24SOIC | IC MOTOR DRIVER BIPOLAR 24SOIC | IC MOTOR DRIVER BIPOLAR 24SOIC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
