UEE-12/12.5-D48NBH-C

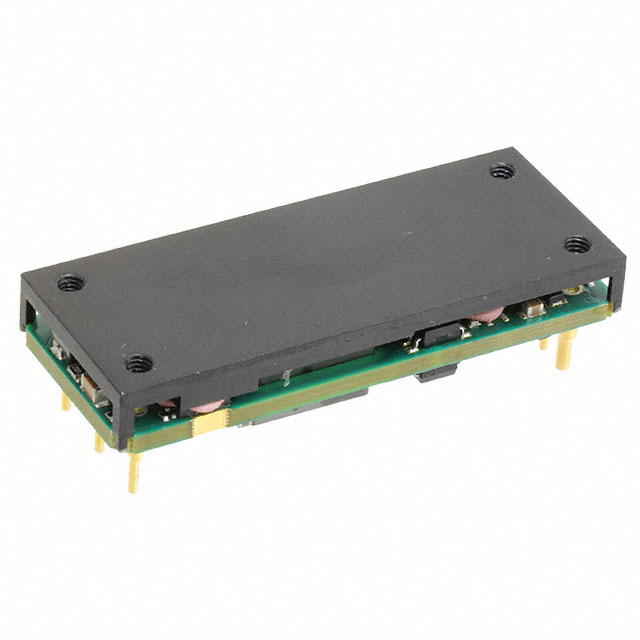

lmages are for reference only.UEE-12/12.5-D48NBH-C
DC DC CONVERTER 12V 150W
DatasheetEighth Brick
90,163 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 12.5A 36V - 75V Input
UEE-12/12.5-D48NBH-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | UEE (150W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 12.5A |
| Power (Watts) | 150 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 93% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Eighth Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | UEE-12 |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | UEE-12/12.5-D48NB-C | UEE-12/12.5-D48N-C | UEE-12/12.5-D48NM-C | UEE-12/12.5-D48P-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 12V 150W | DC DC CONVERTER 12V 150W | DC DC CONVERTER 12V 150W | DC DC CONVERTER 12V 150W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tray | Tray | Tape & Reel (TR) | Tray |
