UEE-3.3/45-D48PB-C
lmages are for reference only.UEE-3.3/45-D48PB-C
DC DC CONVERTER 3.3V 150W
Datasheet8-DIP Module, 1/8 Brick
13,254 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 45.5A 36V - 75V Input
UEE-3.3/45-D48PB-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | UEE (150W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 45.5A |
| Power (Watts) | 150 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 92% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/8 Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | UEE-3.3 |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
 |

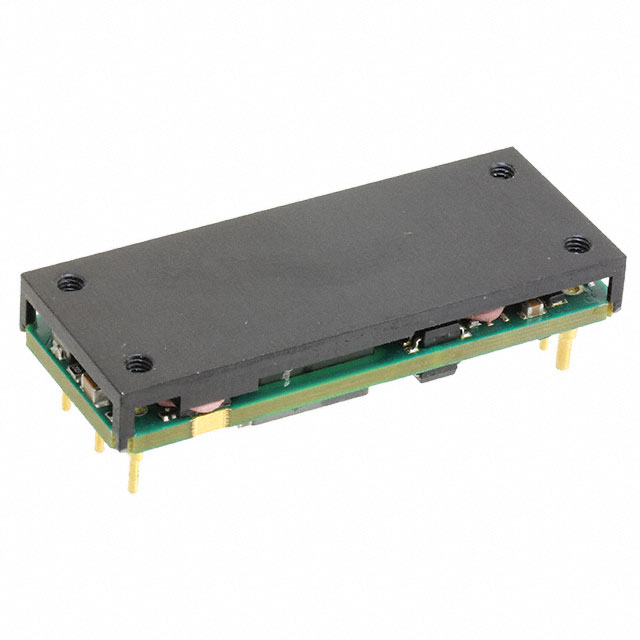

| Part Number | UEE-3.3/45-D48P-C | UEE-3.3/45-D48PM-C | UEE-3.3/45-D48N-C | UEE-3.3/45-D48NB-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 3.3V 150W | DC DC CONVERTER 3.3V 150W | DC DC CONVERTER 3.3V 150W | DC DC CONVERTER 3.3V 150W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tray | Tape & Reel (TR) | Tray | Tray |
