UF3C065040B3
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 650 V 41A (Tc) 176W (Tc) Surface Mount TO-263 (D2PAK)
UF3C065040B3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Qorvo |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | - |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 41A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 12V |
| Rds On (Max) @ Id, Vgs | 52mOhm @ 30A, 12V |
| Vgs(th) (Max) @ Id | 6V @ 10mA |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1500 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 176W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263 (D2PAK) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Base Product Number | UF3C065040 |
| Gate Charge (Qg) (Max) @ Vgs | 51 nC @ 15 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

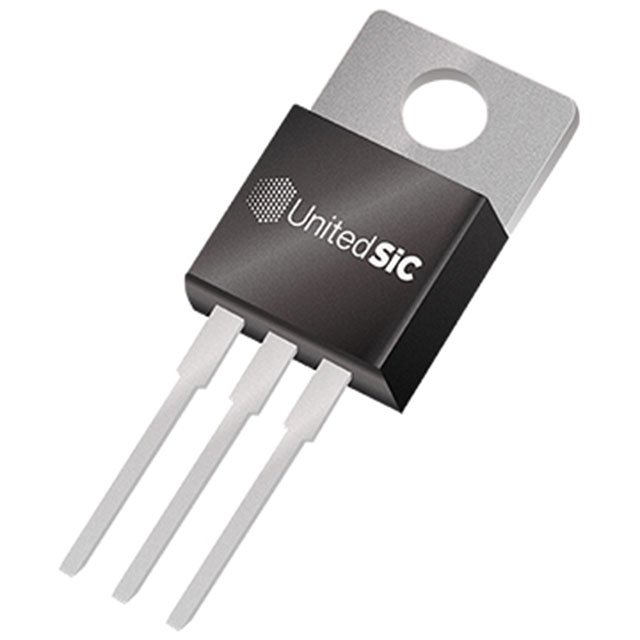

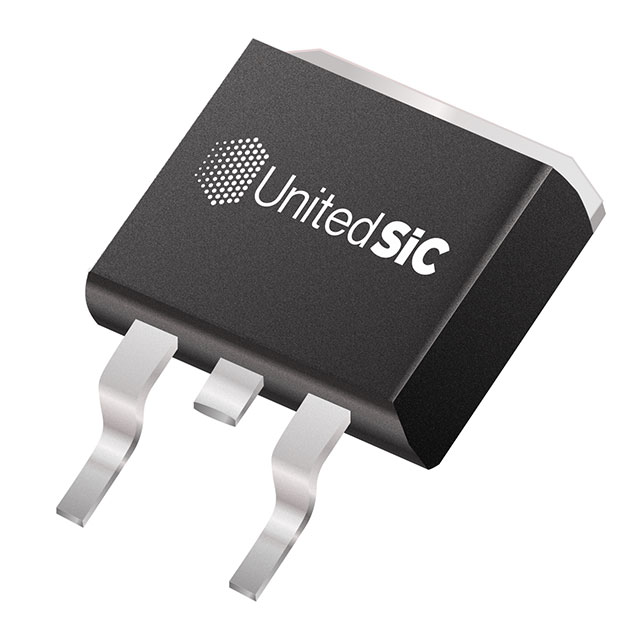

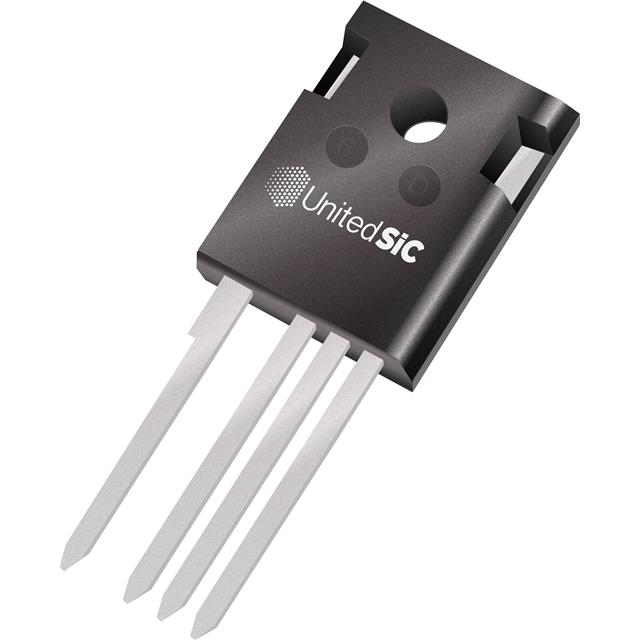

| Part Number | UF3C065040K3S | UF3C065040K4S | UF3C065040T3S | UF3C065030B3 |
| Manufacturer | Qorvo | Qorvo | Qorvo | Qorvo |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 650V 54A TO247-3 | MOSFET N-CH 650V 54A TO247-4 | MOSFET N-CH 650V 54A TO220-3 | MOSFET N-CH 650V 65A TO263 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
