Product CatalogPart Number
UGP1C101MP26308
Manufacturer
Chinsan (Elite)Description
CAP ALUM POLY 100UF 20% 16V TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
63,605 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UGP1C101MP26308
UGP1C101MP26308

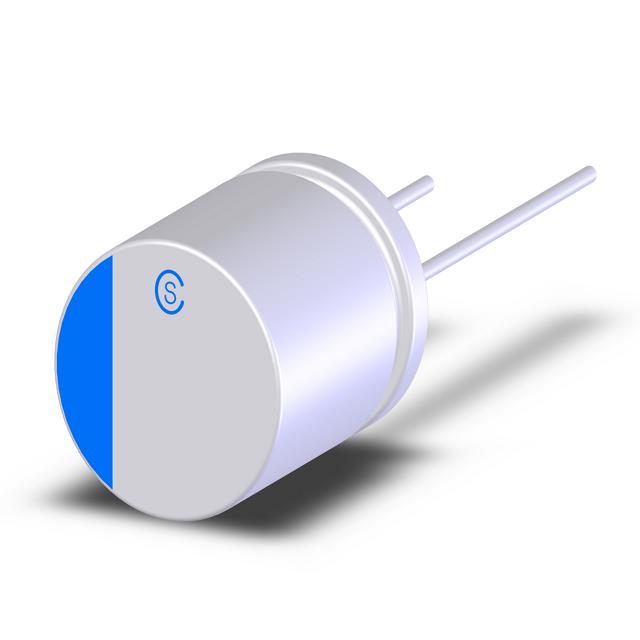

lmages are for reference only.Payment Methods
Delivery Services
100 µF 16 V Aluminum - Polymer Capacitors Radial, Can 24mOhm 2000 Hrs @ 105°C
Quick Inquiry
UGP1C101MP26308
Specifications
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | UGP |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 24mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.49 A @ 100 kHz |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Features | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | UGP1C101MCG6308 | UGP1C181MNN0808U | UGP1C271MP26311 | UGP1C331MNN1007U |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 100UF 20% 16V TH | CAP ALUM POLY 180UF 20% 16V TH | CAP ALUM POLY 270UF 20% 16V TH | CAP ALUM POLY 330UF 20% 16V TH |
| Series | UGP | UGP | UGP | UGP |
| Packaging | Bulk | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Bulk |
