UHE-12/2500-D12-C

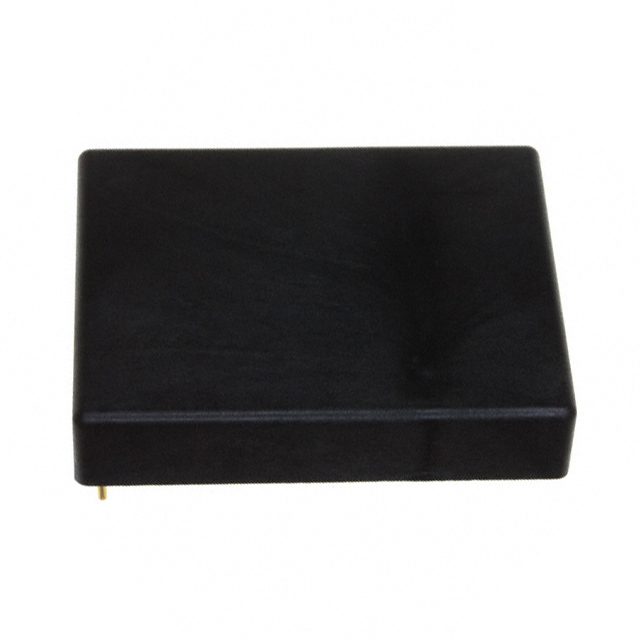

lmages are for reference only.UHE-12/2500-D12-C
DC DC CONVERTER 12V 30W
Datasheet9-DIP Module, 6 Leads
17,962 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 2.5A 9V - 18V Input
UHE-12/2500-D12-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | UHE (30W) |
| Packaging | Box |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 30 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 89% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 9-DIP Module, 6 Leads |
| Size / Dimension | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | UHE-12 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute | |
 |
 |
 |
| Part Number | UHE-12/2500-D12-C | UHE-12/2500-D24-C | UHE-12/2500-D48-C | UHE-12/2500-Q12-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 12V 30W | DC DC CONVERTER 12V 30W | DC DC CONVERTER 12V 30W | DC DC CONVERTER 12V 30W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Box | Tube | Tube | Tube |
