Product CatalogPart Number
UHW1J181MPD
Manufacturer
NichiconDescription
CAP ALUM 180UF 20% 63V RADIAL TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
24,761 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UHW1J181MPD
UHW1J181MPD
lmages are for reference only.Payment Methods
Delivery Services
180 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Quick Inquiry
UHW1J181MPD
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Nichicon |
| Series | UHW |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 480 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | 115 mOhms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | UHW1J181MPD1TD | UHW1J181MPD6 | UHW1J101MPD | UHW1J102MHD |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 180UF 20% 63V RADIAL TH | CAP ALUM 63V POLAR | CAP ALUM 63V POLAR | CAP ALUM 1000UF 20% 63V RADIAL |
| Series | Nichicon | Nichicon | Nichicon | Nichicon |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Tape & Box (TB) | Bulk | Bulk |
Customers Also Interested in
Recommended Products
UHW1J101MPD
Nichicon

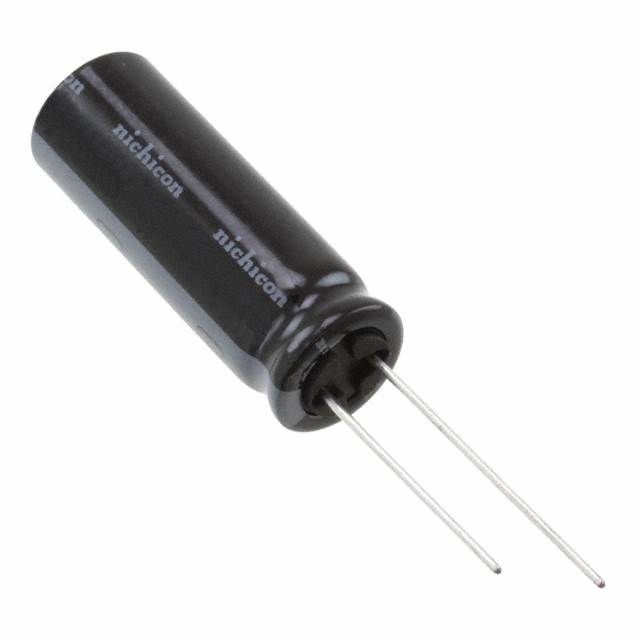

UHW1J102MHD
Nichicon
UHW1J102MHD6
Nichicon

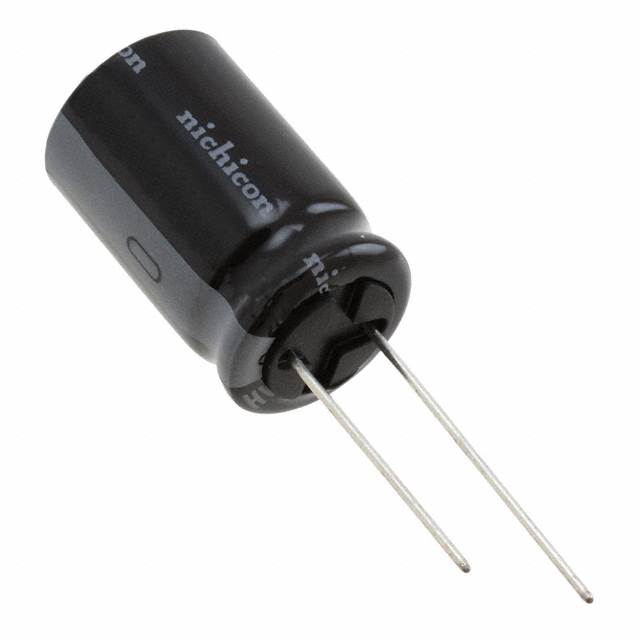

UHW1J102MHD6TN
Nichicon
UHW1J121MPD
Nichicon
UHW1J121MPD6
Nichicon

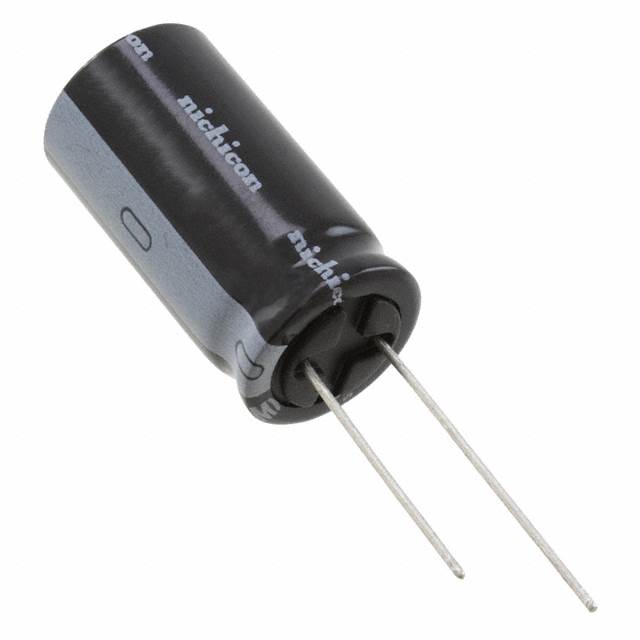

UHW1J122MHD
Nichicon
UHW1J122MHD6
Nichicon
UHW1J122MHD6TN
Nichicon
UHW1J151MPD
Nichicon

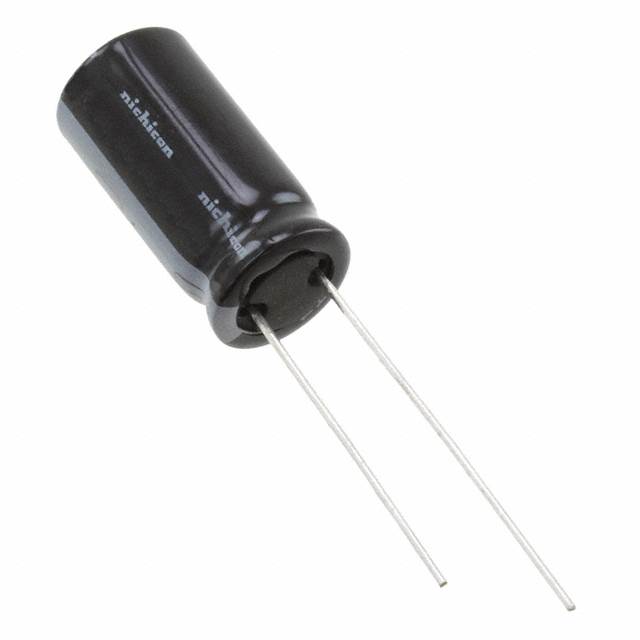

UHW1J151MPD6
Nichicon
UHW1J151MPD6TD
Nichicon
UHW1J152MHD
Nichicon
UHW1J152MHD6
Nichicon

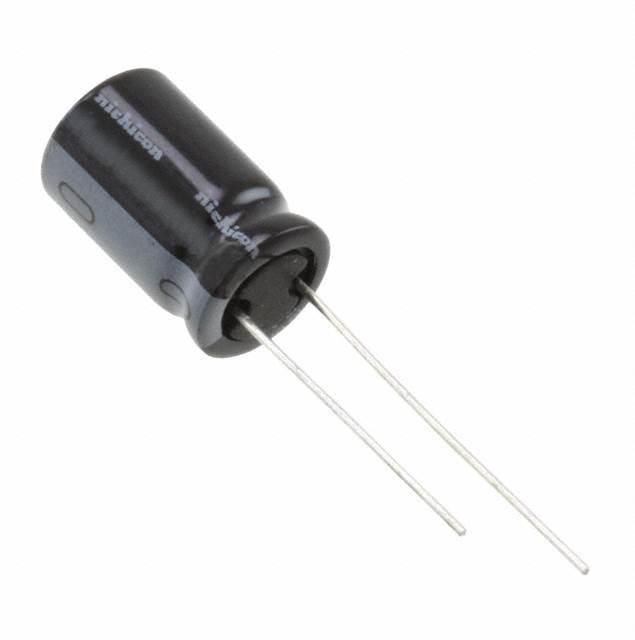

UHW1J181MPD1TD
Nichicon
UHW1J181MPD6
Nichicon

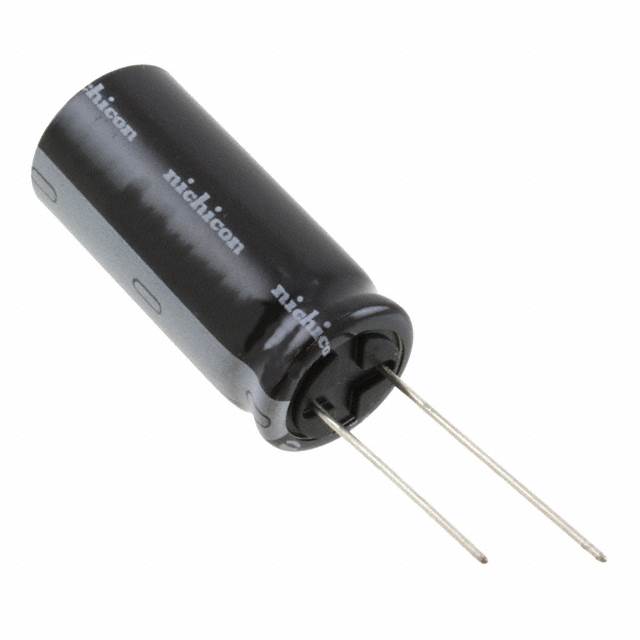

UHW1J182MHD
