UJ4SC075018B7S
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 750 V 72A (Tc) 259W (Tc) Surface Mount D2PAK-7
UJ4SC075018B7S
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Qorvo |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiCFET (Cascode SiCJFET) |
| Drain to Source Voltage (Vdss) | 750 V |
| Current - Continuous Drain (Id) @ 25°C | 72A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 12V |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 50A, 12V |
| Vgs(th) (Max) @ Id | 6V @ 10mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1414 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 259W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK-7 |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Base Product Number | UJ4SC075 |
| Gate Charge (Qg) (Max) @ Vgs | 37.8 nC @ 15 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

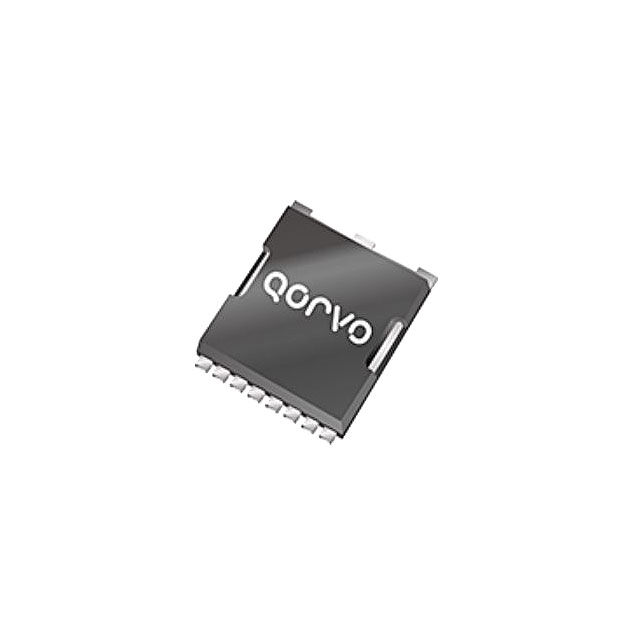

| Part Number | UJ4SC075018L8S | UJ4SC075005L8S | UJ4SC075006K4S | UJ4SC075008L8S |
| Manufacturer | Qorvo | Qorvo | Qorvo | Qorvo |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SICFET N-CH 750V 53A TOLL | SICFET N-CH 750V 120A TOLL | 750V/6MOHM, SIC, STACKED CASCODE | SICFET N-CH 750V 106A TOLL |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
