ULE-2.5/20-D24NM-C
lmages are for reference only.ULE-2.5/20-D24NM-C
DC DC CONVERTER 2.5V 50W
Datasheet8-SMD Module
86,971 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 2.5V 20A 18V - 36V Input
ULE-2.5/20-D24NM-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | ULE |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 2.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 50 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 88.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module |
| Size / Dimension | 2.22" L x 0.89" W x 0.41" H (56.4mm x 22.6mm x 10.4mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | ULE-2.5 |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
 |

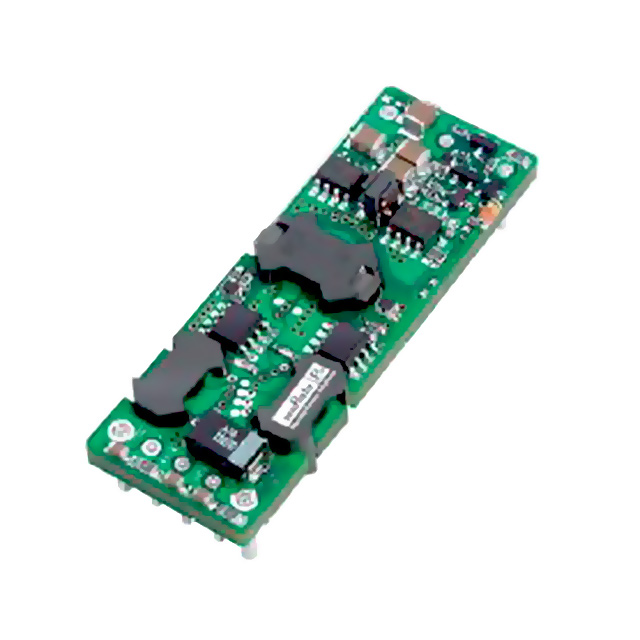

| Part Number | ULE-2.5/20-D24P-C | ULE-2.5/20-D48N-C | ULE-1.8/20-D48N-C | ULE-12/4.2-D24N-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ||
| Description | DC DC CONVERTER 2.5V 50W | DC DC CONVERTER 2.5V 50W | DC DC CONVERTER 1.8V 36W | DC DC CONVERTER 12V 50W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tray | Tray | Tube |
