ULN2002D1013TR

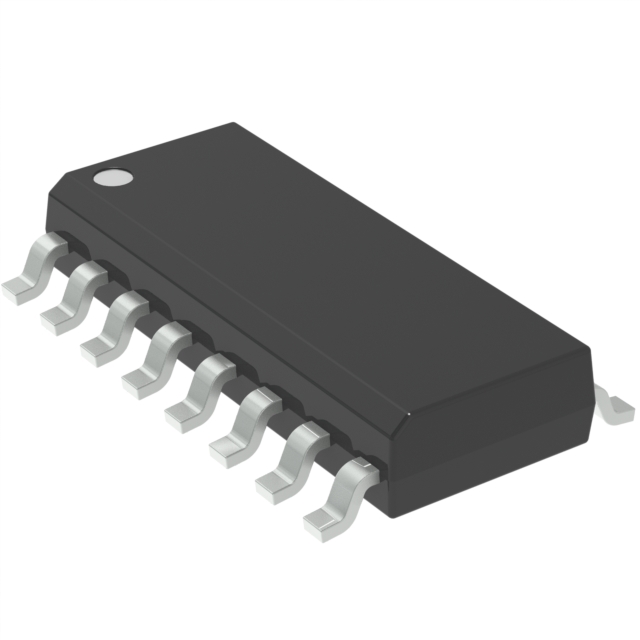

lmages are for reference only.ULN2002D1013TR
IC PWR RELAY 7NPN 1:1 16SO
Datasheet16-SOIC (0.154", 3.90mm Width)
32,177 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 NPN 500mA 16-SO
ULN2002D1013TR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | STMicroelectronics |
| Series | ULx200xA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Switch Type | Relay, Solenoid Driver |
| Number of Outputs | 7 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | NPN |
| Interface | Parallel |
| Voltage - Load | 50V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | - |
| Input Type | Inverting |
| Features | - |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SO |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Base Product Number | ULN2002 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ULN2002D | ULN2001A | ULN2001AD | ULN2001D |
| Manufacturer | UMW | STMicroelectronics | Texas Instruments | UMW |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IC PWR RELAY 7NPN 1:1 16SOIC | IC PWR RELAY 7NPN 1:1 16DIP | SMALL SIGNAL BIPOLAR TRANSISTOR | IC PWR RELAY 7NPN 1:1 16SOIC |
| Series | UMW | STMicroelectronics | Texas Instruments | UMW |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
