Product CatalogPart Number
UMPT-03-01.5-L-V-S-TR
Manufacturer
Samtec Inc.Description
CONN HDR 3POS 2.00MM SMD SLDR
Datasheet
DatasheetPackage
-
In Stock
21,908 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

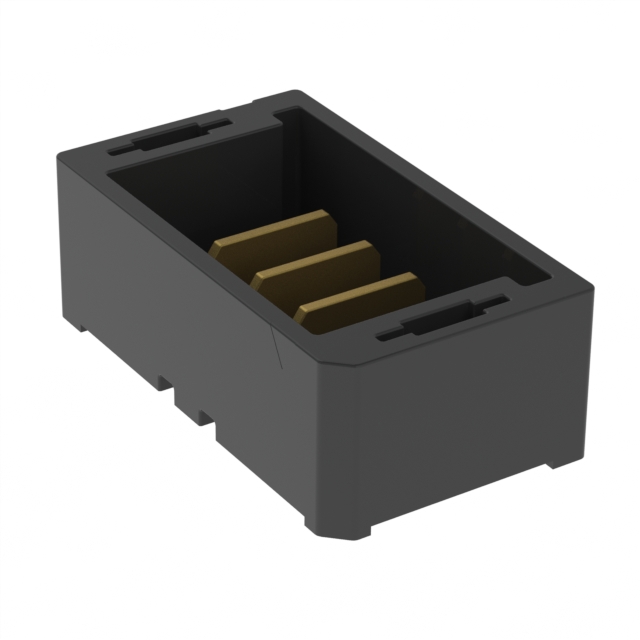

UMPT-03-01.5-L-V-S-TR
UMPT-03-01.5-L-V-S-TR
lmages are for reference only.Payment Methods
Delivery Services
3 Position Header, Male Blades Connector Solder 0.079" (2.00mm) Surface Mount
Quick Inquiry
UMPT-03-01.5-L-V-S-TR
Specifications
| Category | Connectors, Interconnects - Blade Type Power Connectors - Blade Type Power Connector Assemblies |
| Manufacturer | Samtec Inc. |
| Series | mPower™ UMPT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Style | - |
| Connector Type | Header, Male Blades |
| Number of Positions | 3 |
| Pitch | 0.079" (2.00mm) |
| Mounting Type | Surface Mount |
| Number of Rows | 1 |
| Termination | Solder |
| Wire Gauge | - |
| Features | - |
| Color | Black |
| Fastening Type | - |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Voltage Rating | 650 V |
| Current Rating (Amps) | - |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -55°C ~ 125°C |
| Base Product Number | UMPT-03 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

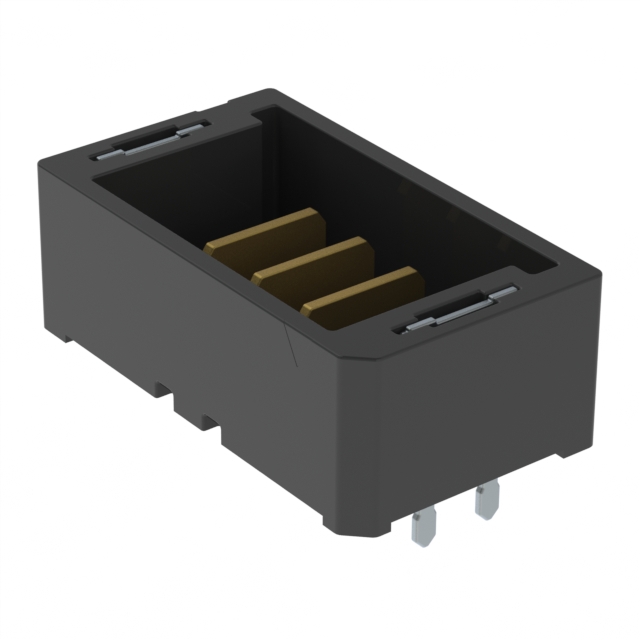

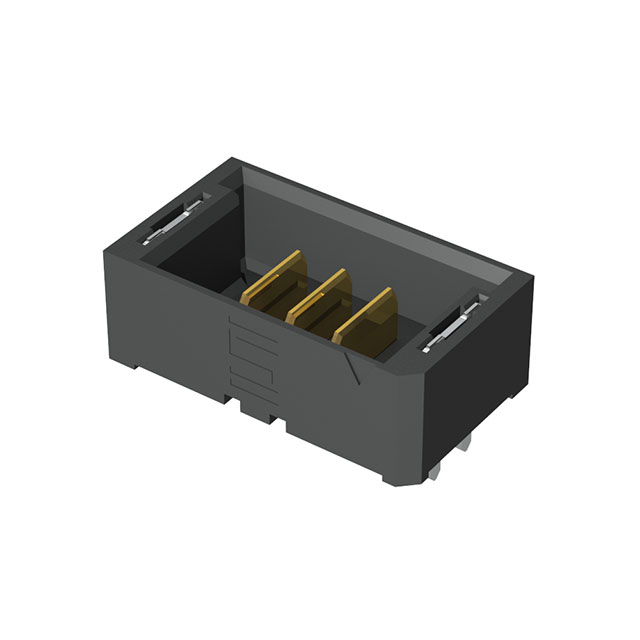

| Part Number | UMPT-03-01.5-G-V-S-W-TR | UMPT-03-01.5-L-V-S-W-TR | UMPT-02-01-L-RA-WT-M-TR | UMPT-02-01-L-RA-WT-P-TR |
| Manufacturer | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HDR 3POS 2.00MM SMD SLDR | CONN HDR 3POS 2.00MM SMD SLDR | CONN HDR 2POS 2.00MM R/A SLDR | CONN HDR 2POS 2.00MM R/A SLDR |
| Series | mPower™ UMPT | mPower™ UMPT | mPower™ UMPT | mPower™ UMPT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
