Product CatalogPart Number

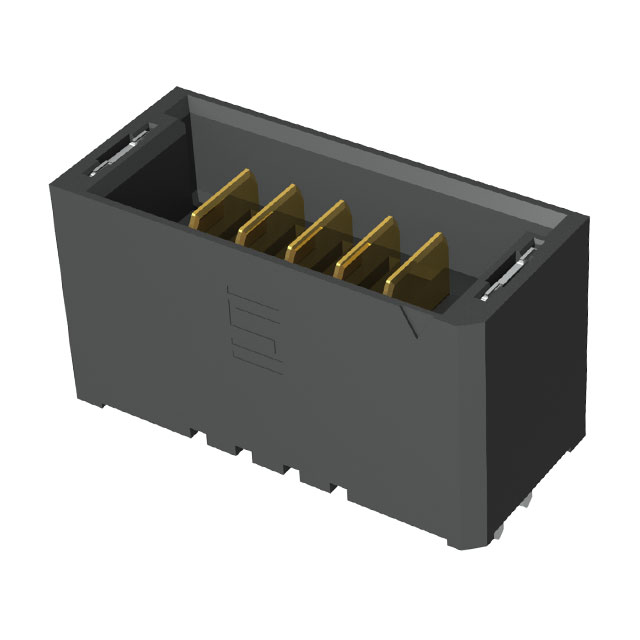

UMPT-05-06.5-G-V-S-W-TR
Manufacturer
Samtec Inc.Description
CONN HDR 5POS 2.00MM SMD SLDR
Datasheet
DatasheetPackage
-
In Stock
74,141 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UMPT-05-06.5-G-V-S-W-TR
UMPT-05-06.5-G-V-S-W-TR
lmages are for reference only.Payment Methods
Delivery Services
5 Position Header, Male Blades Connector Solder 0.079" (2.00mm) Surface Mount
Quick Inquiry
UMPT-05-06.5-G-V-S-W-TR
Specifications
| Category | Connectors, Interconnects - Blade Type Power Connectors - Blade Type Power Connector Assemblies |
| Manufacturer | Samtec Inc. |
| Series | mPower™ UMPT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Style | - |
| Connector Type | Header, Male Blades |
| Number of Positions | 5 |
| Pitch | 0.079" (2.00mm) |
| Mounting Type | Surface Mount |
| Number of Rows | 1 |
| Termination | Solder |
| Wire Gauge | - |
| Features | Pick and Place, Solder Retention |
| Color | Black |
| Fastening Type | - |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Voltage Rating | 650 V |
| Current Rating (Amps) | - |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -55°C ~ 125°C |
| Base Product Number | UMPT-05 |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | UMPT-05-06.5-L-V-S-W-TR | UMPT-05-06.5-S-V-S-TR | UMPT-05-06.5-T-V-S-W-TR | UMPT-05-01-L-RA-WT-M-TR |
| Manufacturer | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HDR 5POS 2.00MM SMD SLDR | CONN HDR 5POS 2.00MM SMD SLDR | CONN HDR 5POS 2.00MM SMD SLDR | CONN HDR 5POS 2.00MM R/A SLDR |
| Series | mPower™ UMPT | mPower™ UMPT | mPower™ UMPT | mPower™ UMPT |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Bulk |
Customers Also Interested in
Recommended Products
UMPT-02-01-L-RA-WT-M-TR
Samtec Inc.

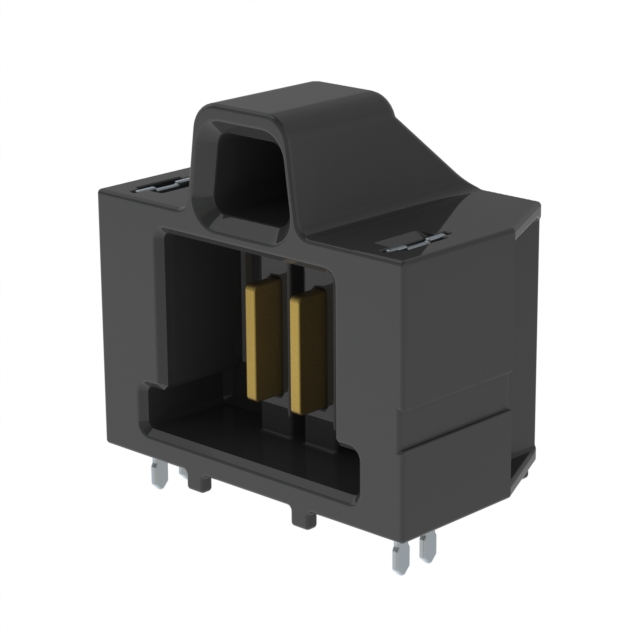

UMPT-02-01-L-RA-WT-P-TR
Samtec Inc.
UMPT-02-01-L-RA-WT-TR
Samtec Inc.
UMPT-02-01-S-RA-WT-M-TR
Samtec Inc.

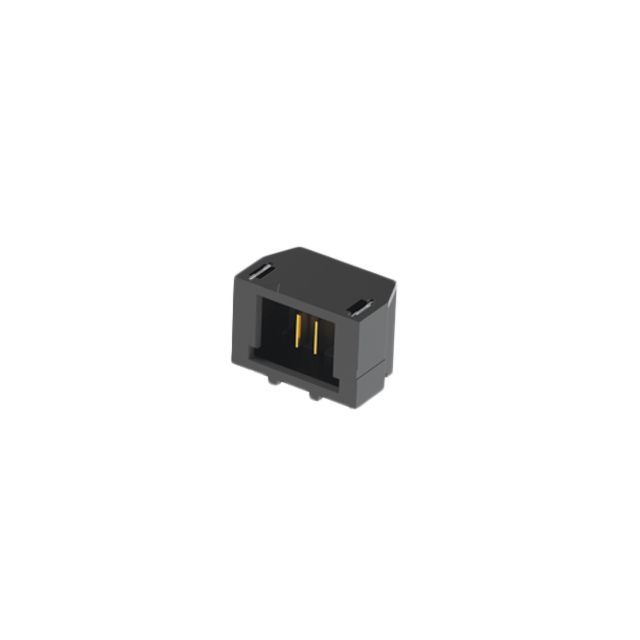

UMPT-02-01-S-RA-WT-TR
Samtec Inc.
UMPT-02-01-T-RA-WT-TR
Samtec Inc.
UMPT-02-01.5-G-V-S-TR
Samtec Inc.

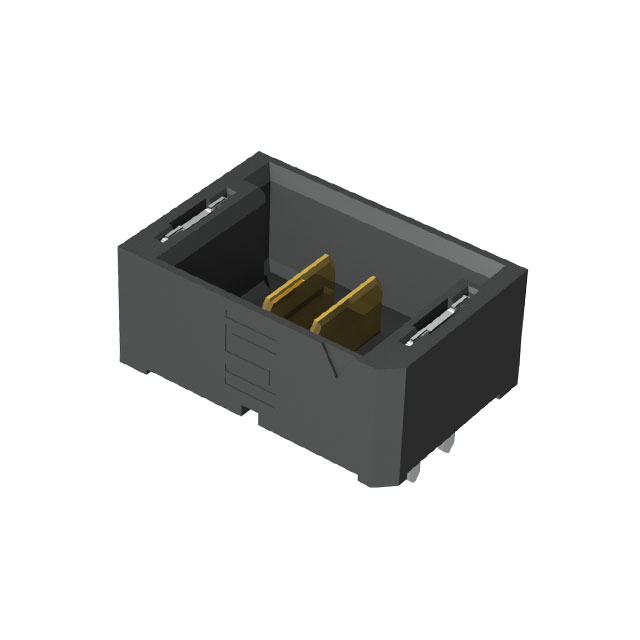

UMPT-02-01.5-G-V-S-W-TR
